Lexmark X548 Series Service Manual

Repair information 4-75
7525-63x
Go Back
Previous
Next
Scanner component removal procedures
Flatbed removal
1. Remove the AIO rear cable cover. See “AIO back cable cover removal” on page 4-8.
2. Remove the rear shield. See “Rear shield removal” on page 4-7.
3. Remove the left cover. See “Left cover removal” on page 4-4.
4. Remove the ADF unit. See “Duplex ADF removal” on page 4-87.
5. Disconnect the CCD cable from JCCD1 on the RIP board.

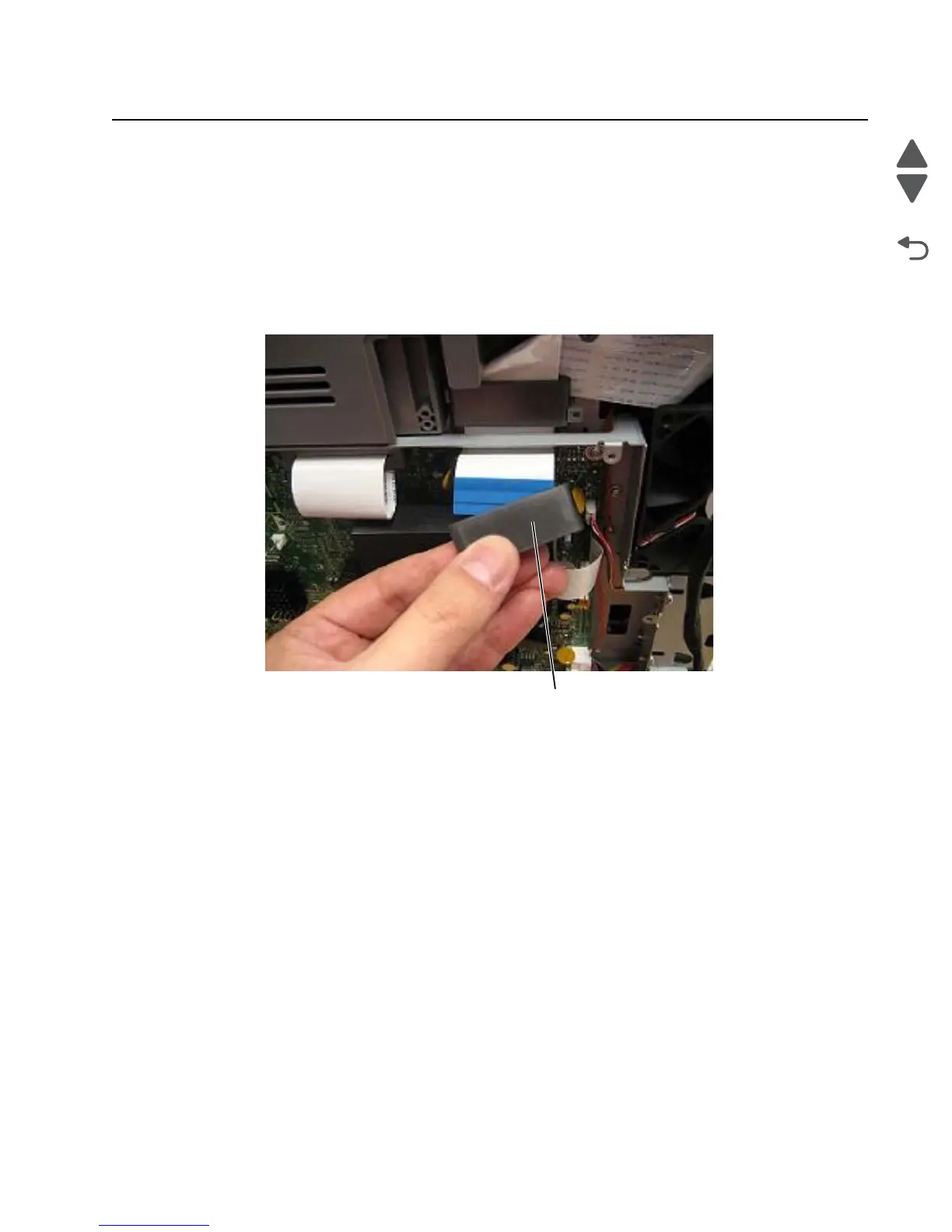

6. Remove the first toroid (A) from the CCD cable. The toroid will be reused on the new flatbed unit.
A
