Narrow media sensor flag removal

1. Open the front cover.

2. Remove the narrow media sensor flag.

3. Remove the cable from the retainer.

Note: Be sure to note the routing for reinstallation.

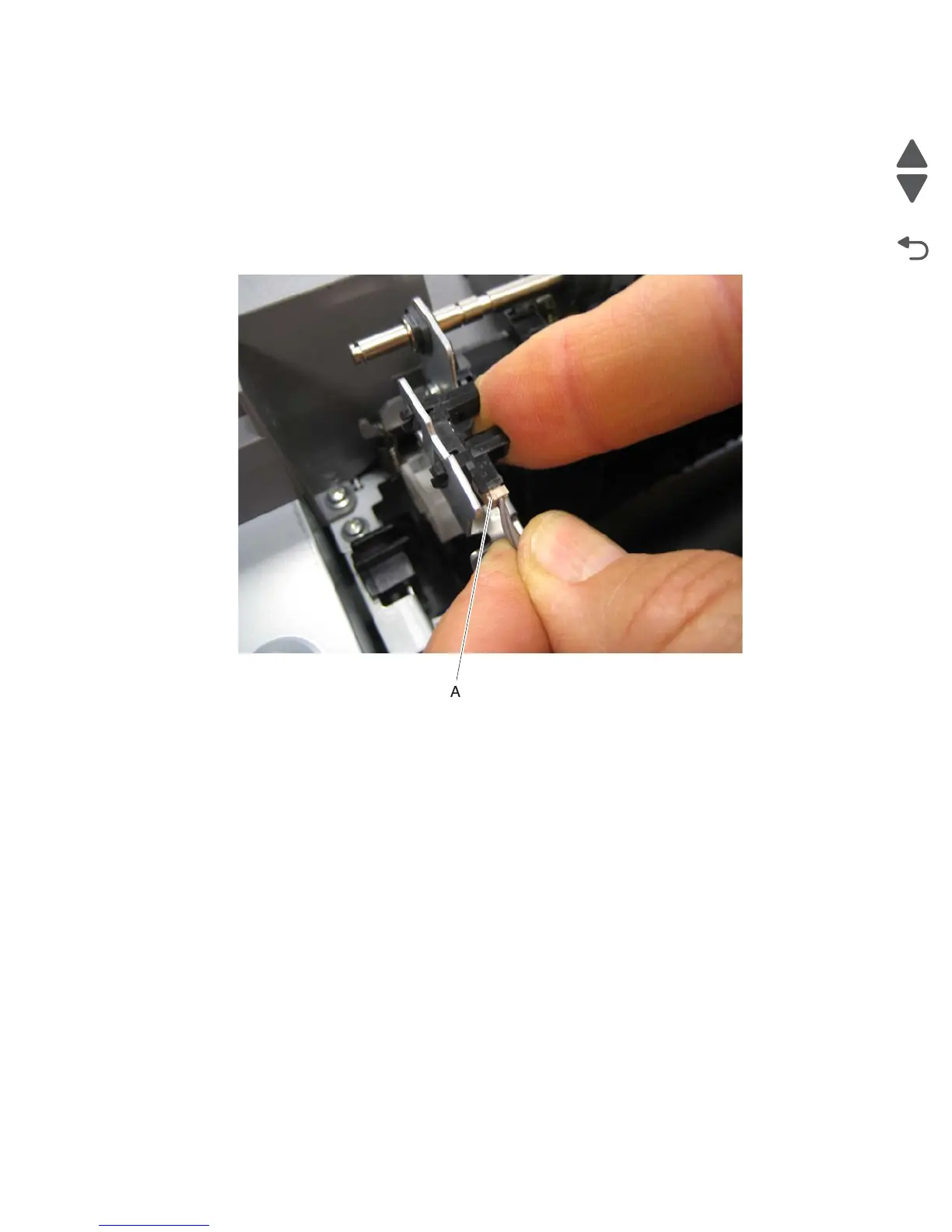

4. Disconnect the cable (A) from the narrow media sensor.
