Lexmark X548 Series - Waste Toner Bottle Removal

To Next Page

To Previous Page

Repair information 4-73

7525-63x

Go Back

Waste toner bottle removal

The waste toner bottle is a customer replaceable unit.

1. Open the front cover.

2. Lift the toner cover.

3. Remove the right cover assembly. See “Right cover removal” on page 4-7.

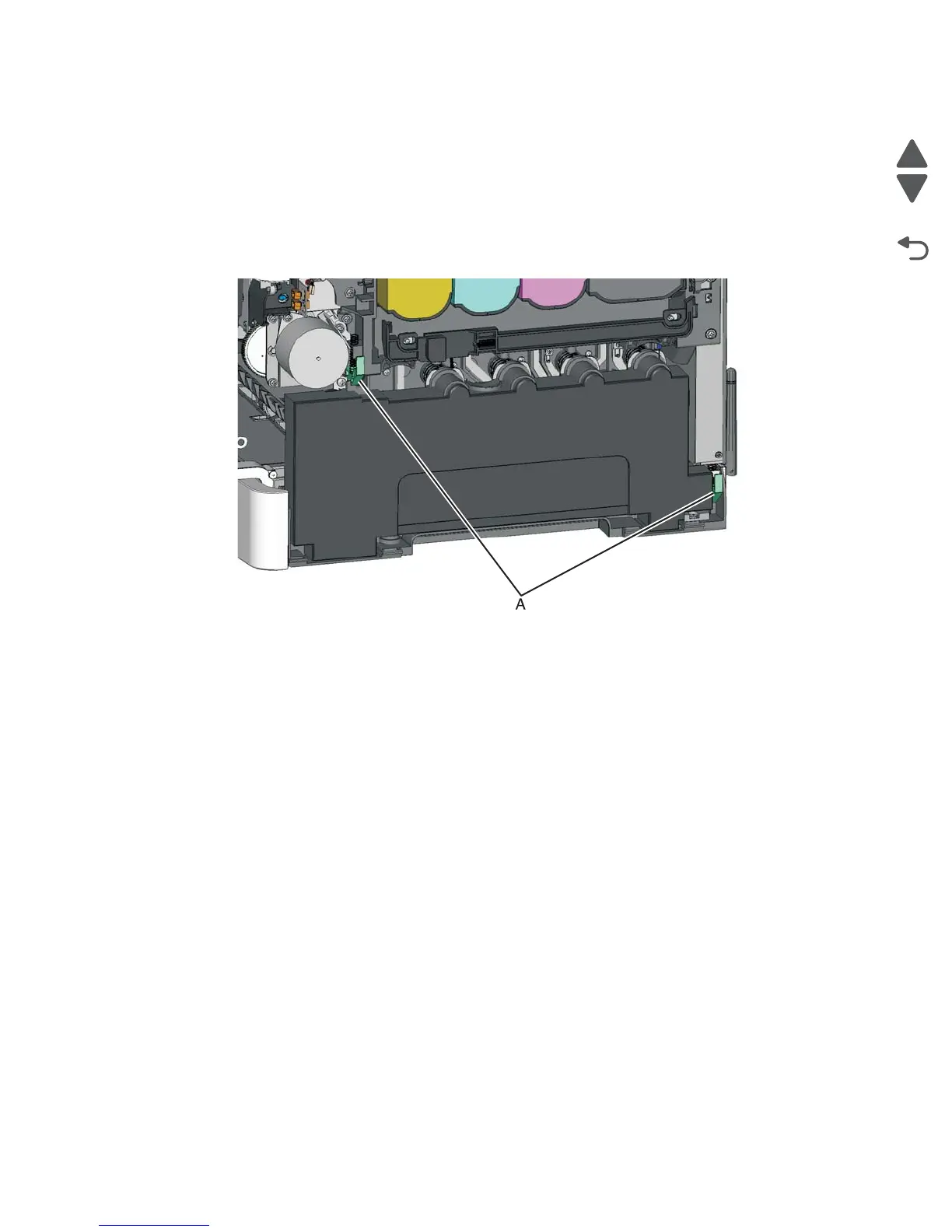

4. Press the two tabs (A) to release the waste toner bottle, and remove it.
