Repair information 4-87

7525-63x

Go Back

Duplex ADF removal

1. Remove the duplex ADF rear cover from the ADF assembly. See “Duplex ADF rear cover removal” on

page 4-86. Save the cover for use on the new ADF unit.

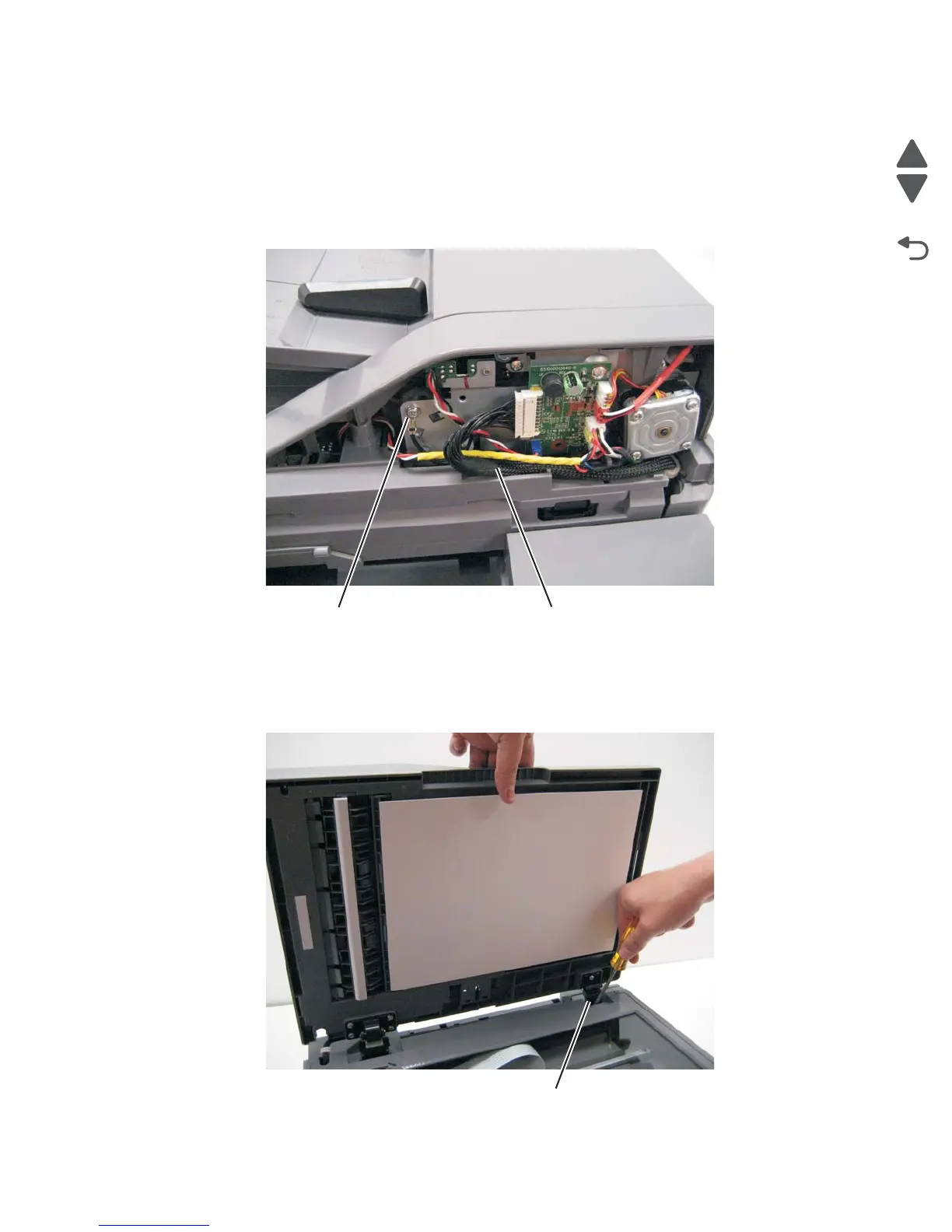

2. Disconnect the ground cable (A) from the ADF assembly.

3. Disconnect the ADF cable (B) from the ADF card located on the ADF assembly.

4. Carefully pull the ADF cable and grommet away from the ADF assembly.

5. Lift the ADF to an upright position.

6. Use a screwdriver to release the right hinge (C) from the flatbed unit.

A B
