4-88 Service Manual

7525-63x

Go Back

7. Remove the ADF assembly.

Note: After installing the new ADF unit, perform the scanner calibration procedure and the scanner

manual registration procedure. See “Scanner Calibration” on page 3-14 and “Scanner Manual

Registration” on page 3-38.

ADF input tray removal

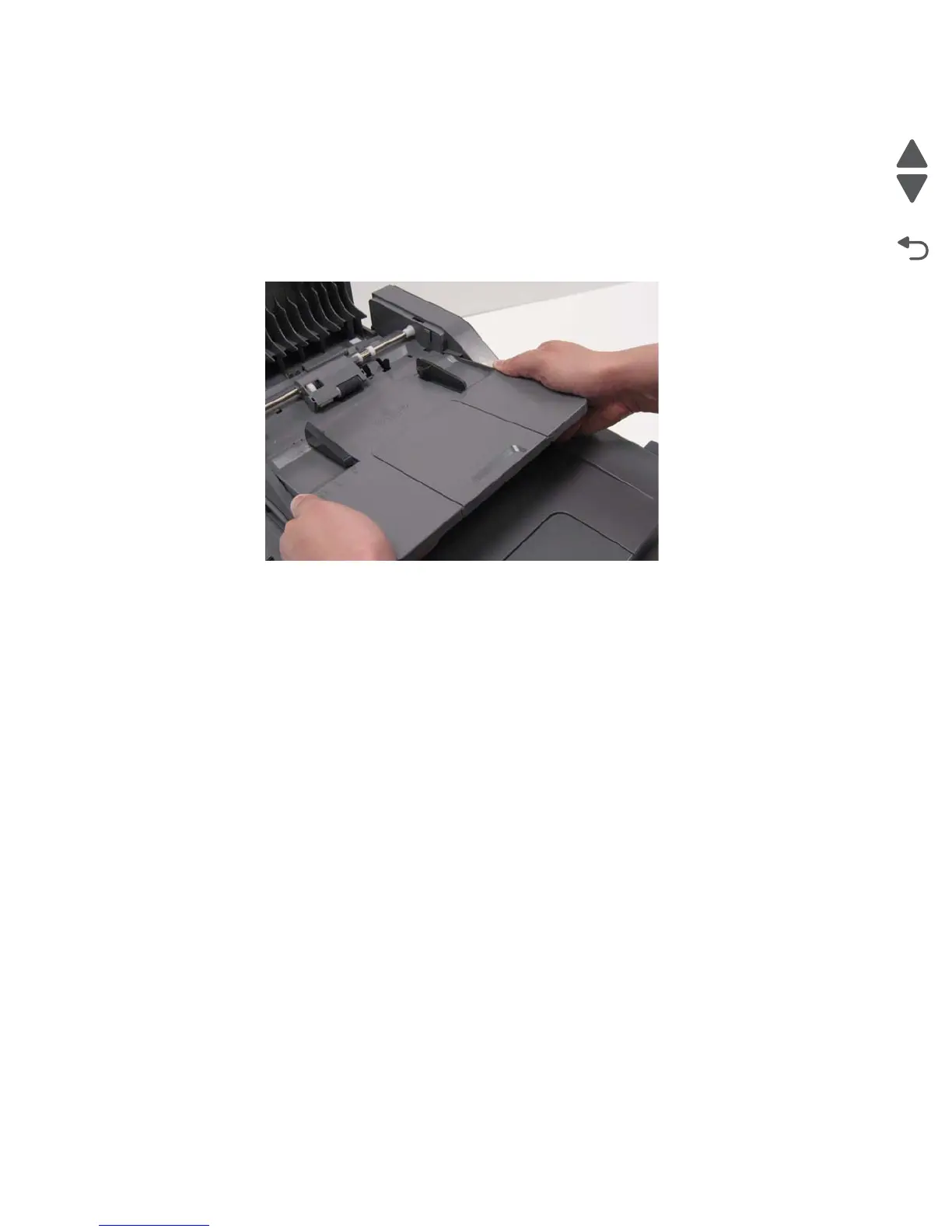

1. Firmly grasp the ADF input tray on both sides.

2. Pull the ADF input tray out of the ADF.
