Repair information 4-111

7525-63x

Go Back

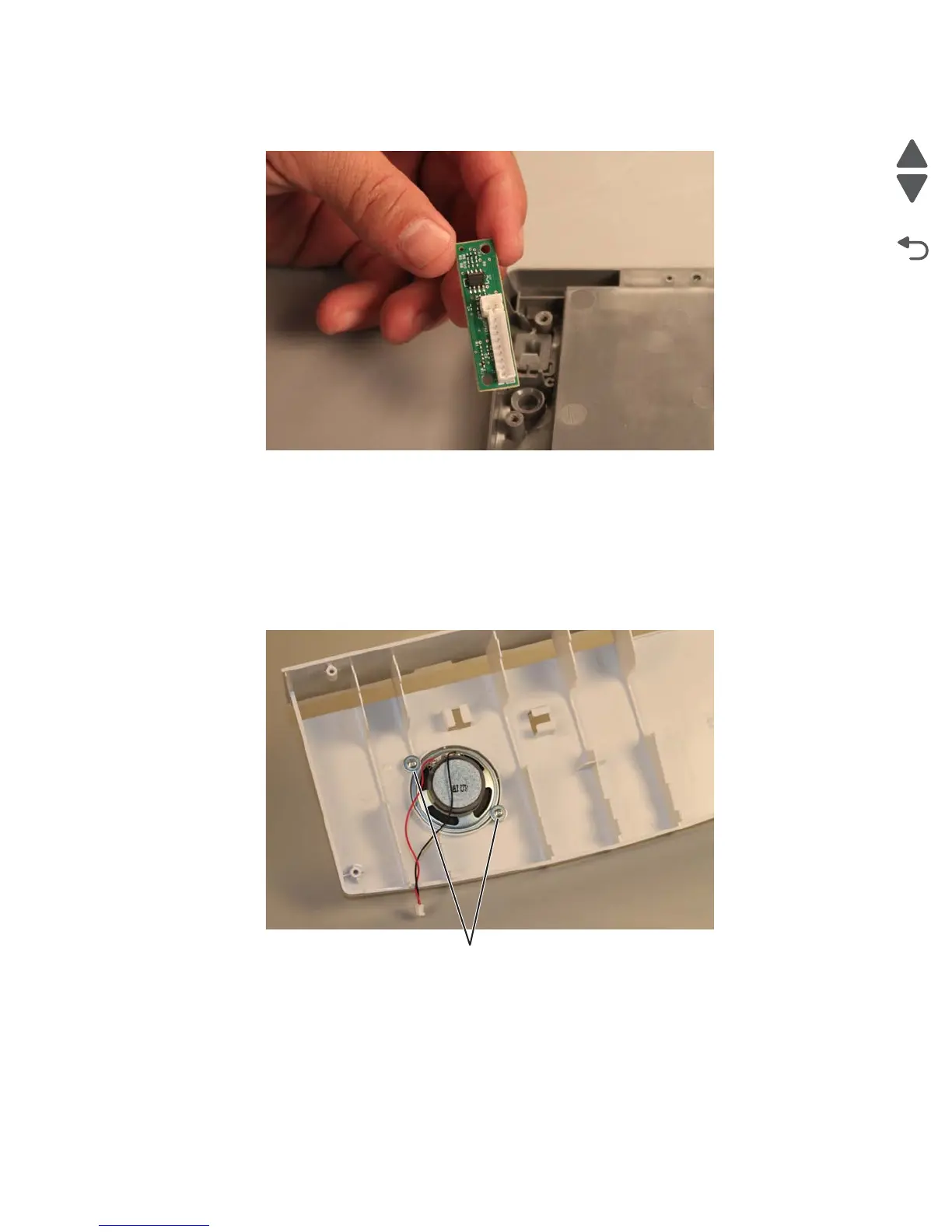

5. Remove the sleep button PCB.

Speaker removal

1. Remove the operator panel bezel. See “Operator panel bezel removal” on page 4-104.

2. Remove the operator panel frame cover. See “Operator panel frame cover removal” on page 4-107.

3. Remove the rear case with speaker. See “Rear case with speaker removal” on page 4-108.

4. Remove the two screws (A) from the speaker.
