4-110 Service Manual
7525-63x
Go Back
Previous
Next
Sleep button removal
1. Remove the operator panel bezel. See “Operator panel bezel removal” on page 4-104.
2. Remove the operator panel frame cover. See “Operator panel frame cover removal” on page 4-107.
3. Remove the rear case with speaker. See Rear case with speaker removal” on page 4-108.
4. Remove the sleep button PCB. See “Sleep button PCB removal” on page 4-110.

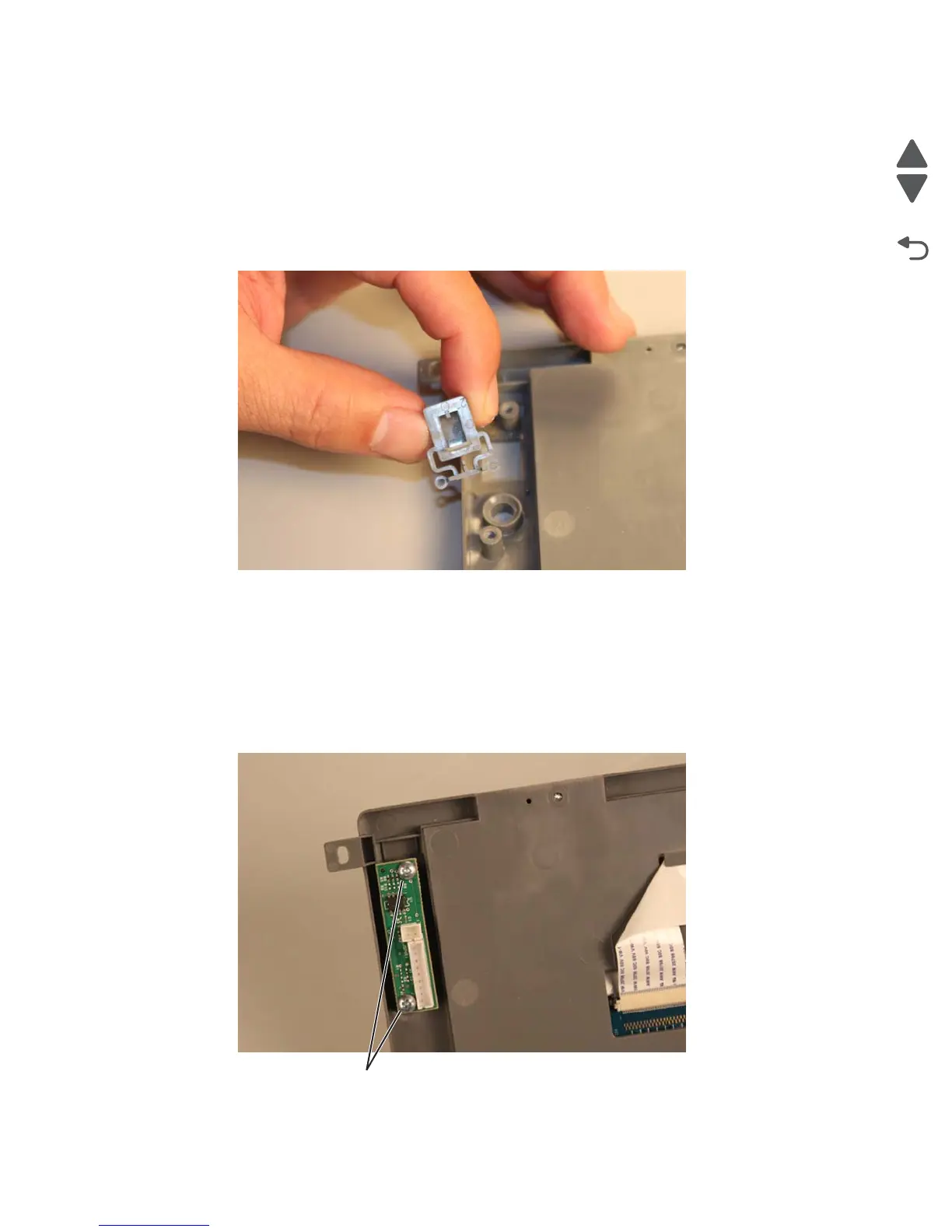

5. Remove the sleep button.
Sleep button PCB removal
1. Remove the operator panel bezel. See “Operator panel bezel removal” on page 4-104.
2. Remove the operator panel frame cover. See “Operator panel frame cover removal” on page 4-107.
3. Remove the rear case with speaker. See Rear case with speaker removal” on page 4-108.
4. Remove the two screws (A) from the sleep button PCB.
A
