Repair information 4-109

7525-63x

Go Back

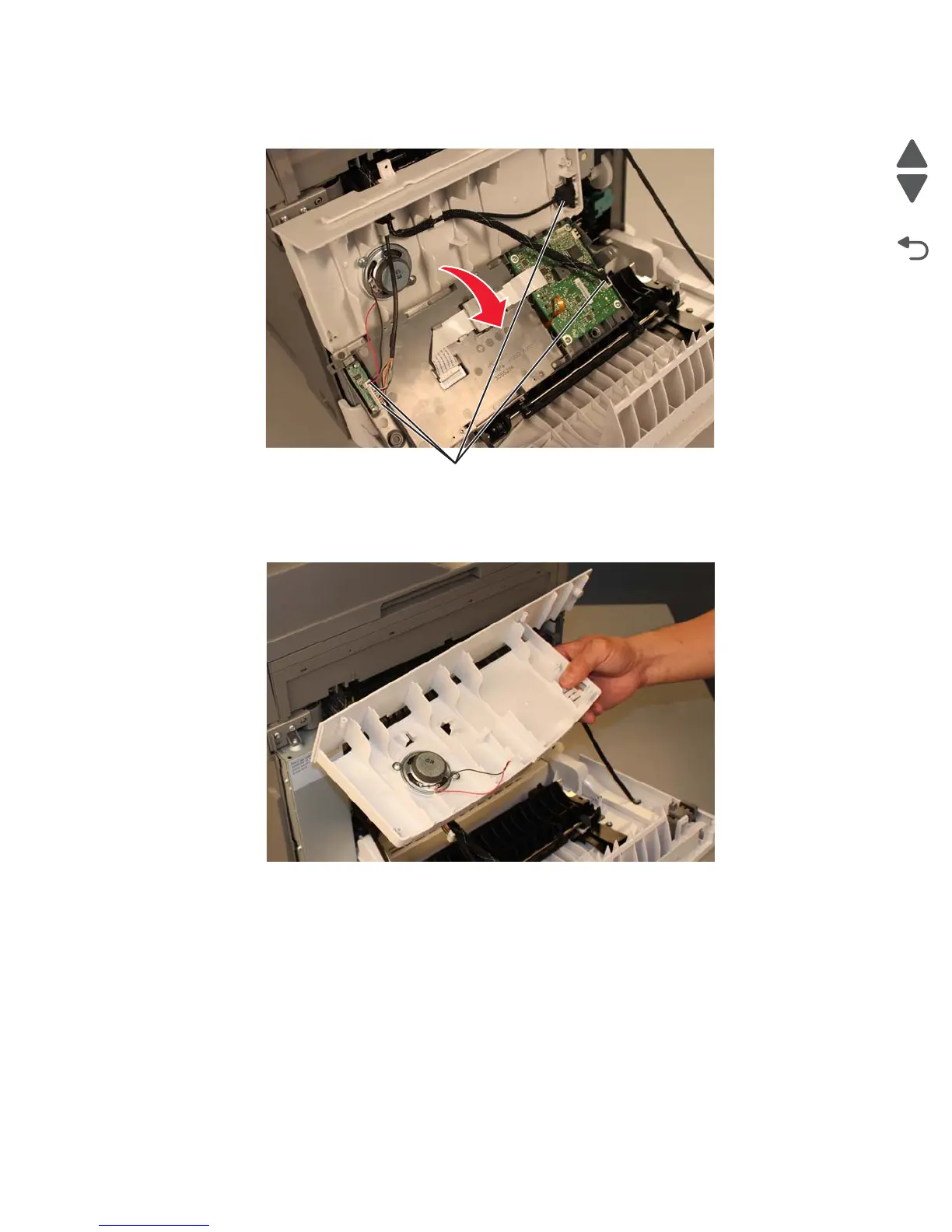

4. Pull the operator panel cover away from the rear case, and disconnect the four cables (B).

5. Route the cables off the rear case.

6. Remove the rear case with speaker.
