Repair information 4-107

7525-63x

Go Back

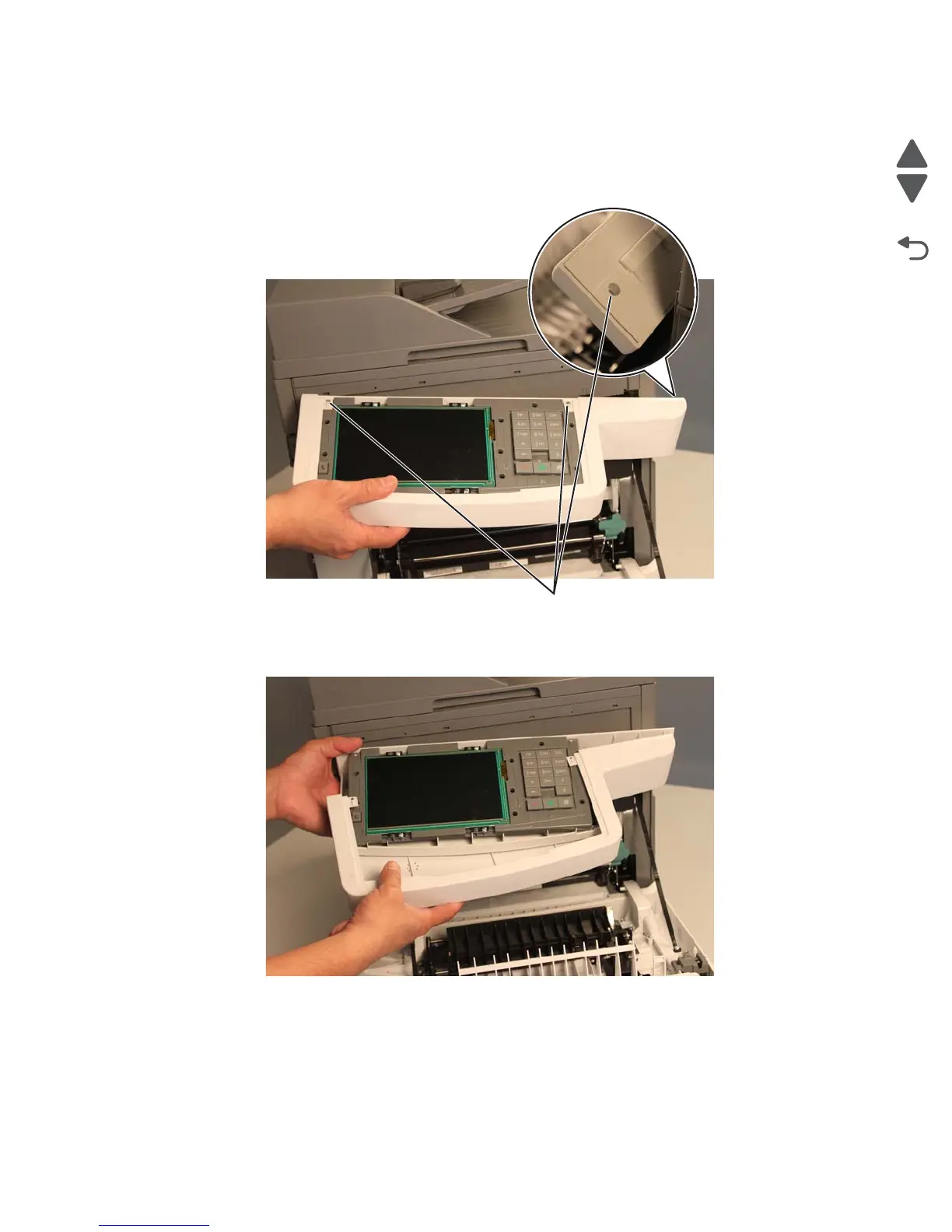

Operator panel frame cover removal

1. Remove the operator panel bezel. See “Operator panel bezel removal” on page 4-104.

2. Using a 1.0 Phillips screwdriver, remove the three screws (A) from the rear side of the operator panel.

3. Remove the operator panel frame cover.
