4-106 Service Manual

7525-63x

Go Back

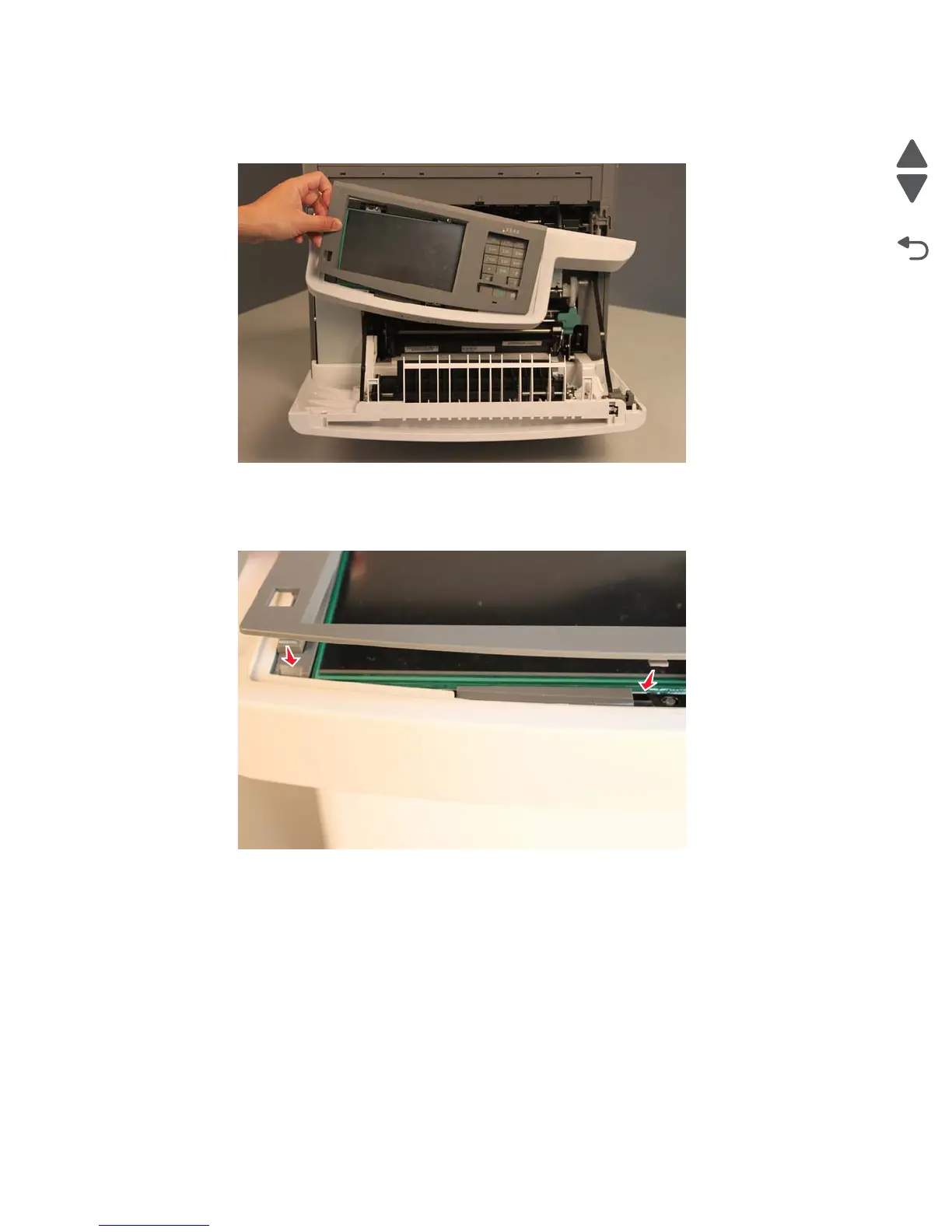

5. Slightly pull the operator panel away from the printer, then pry the operator panel bezel off the operator

panel.

Warning: During reinstallation, be sure to properly engage the tabs of the operator panel bezel to their

corresponding slots. Failure to align them may cause the tabs to break or deform.
