Repair information 4-105

7525-63x

Go Back

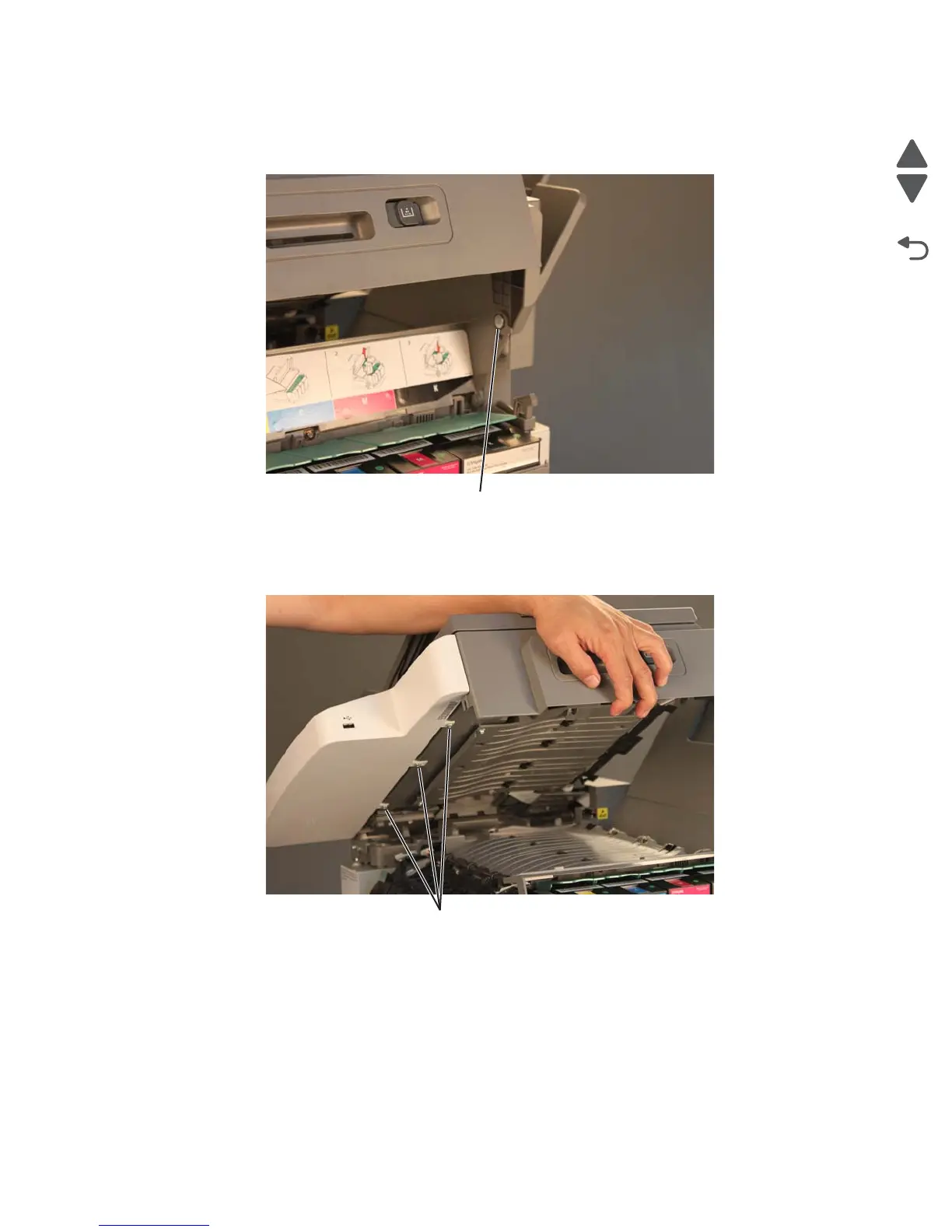

3. Remove the screw (A) from the joint linking the flatbed to the printer.

Warning: Do not over-extend the flatbed when lifting it after the screw (A) has been removed.

4. Remove the three screws (B) under the operator panel.
