Lexmark X548 Series - Clearances

To Next Page

To Previous Page

1-6 Service Manual

7525-63x

Go Back

Clearances

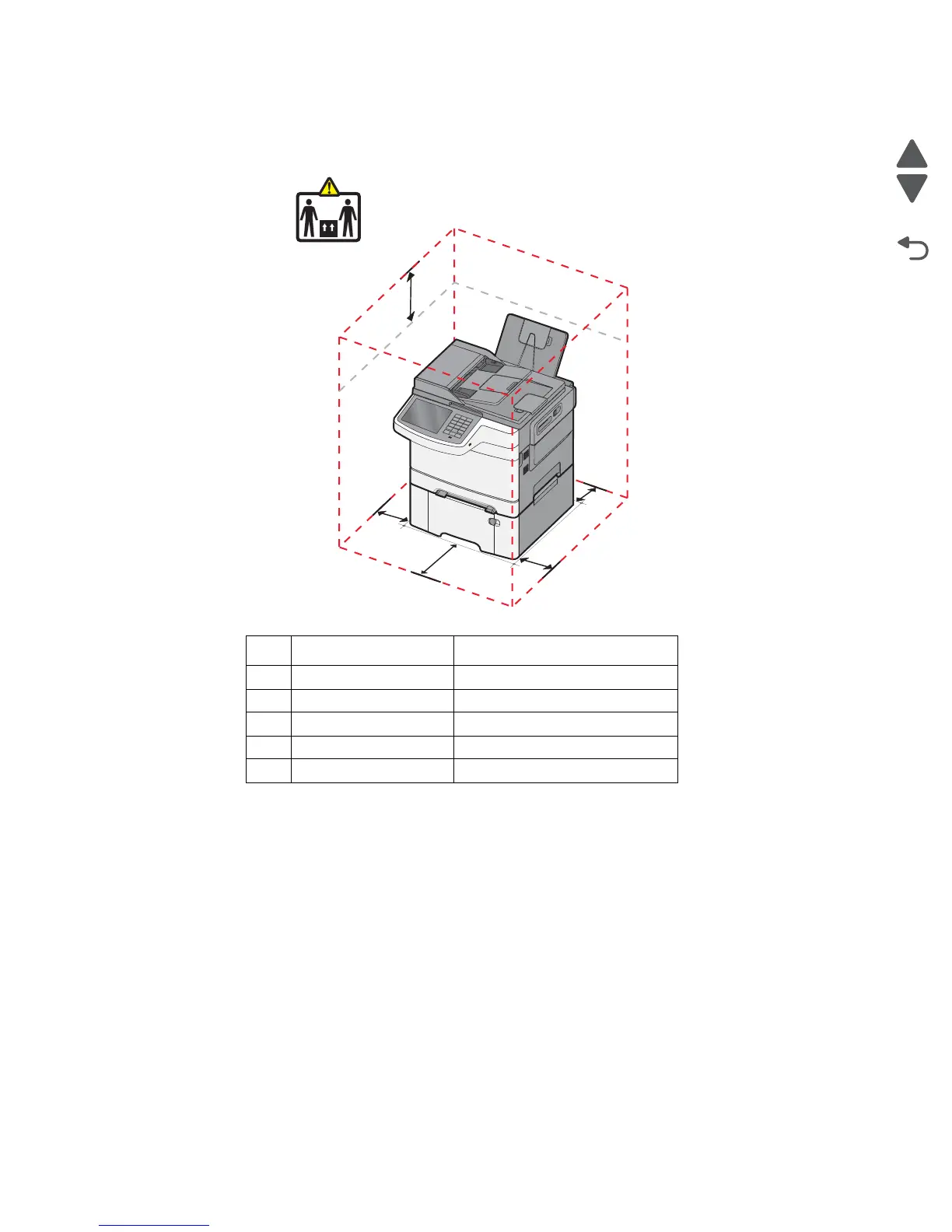

Description Clearances

1 Rear 102 mm (4 in.)

2 Right side 508 mm (20 in.)

3 Front 152 mm (6 in.)

4 Left side 76 mm (3 in.)

5 Top 254 mm (10 in.)

32.07 kg

(70.71 lb)
