Repair information 4-103
7525-63x
Go Back
Previous
Next
Operator panel cover with light pipe removal
1. Remove the operator panel bezel. See “Operator panel bezel removal” on page 4-104.
2. Remove the operator panel frame cover. See “Operator panel frame cover removal” on page 4-107.
3. Remove the rear case with speaker. See Rear case with speaker removal” on page 4-108.
4. Remove the sleep button PCB. See “Sleep button PCB removal” on page 4-110.
5. Remove the sleep button. See “Sleep button removal” on page 4-110.
6. Remove the user interface controller card. See “User interface controller card removal” on
page 4-113.
7. Remove the LCD. See “LCD removal” on page 4-100.

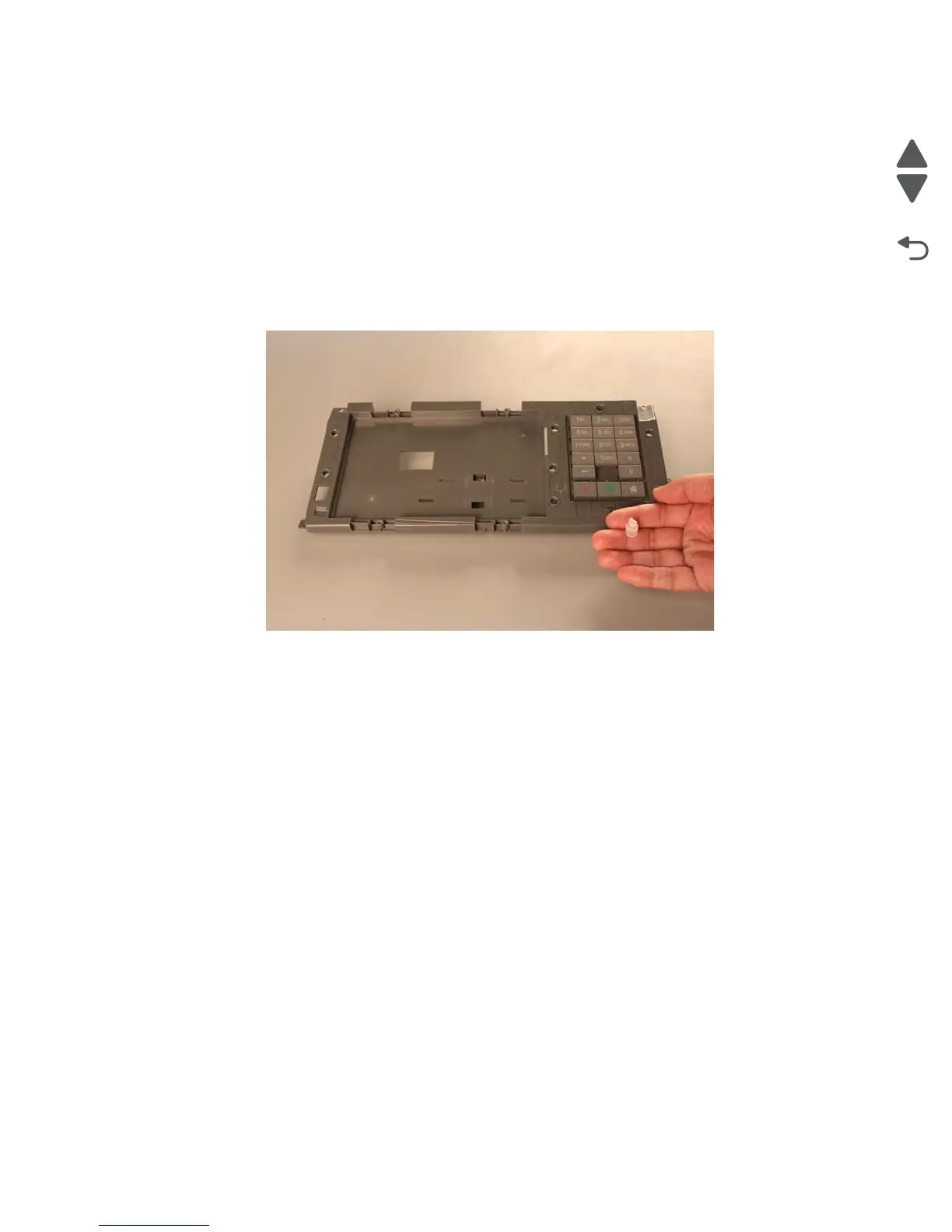

The operator panel cover with light pipe is shown below:
