Repair information 4-99

7525-63x

Go Back

Bin full flag removal

1. Lift the scanner assembly, and lock it into the up position.

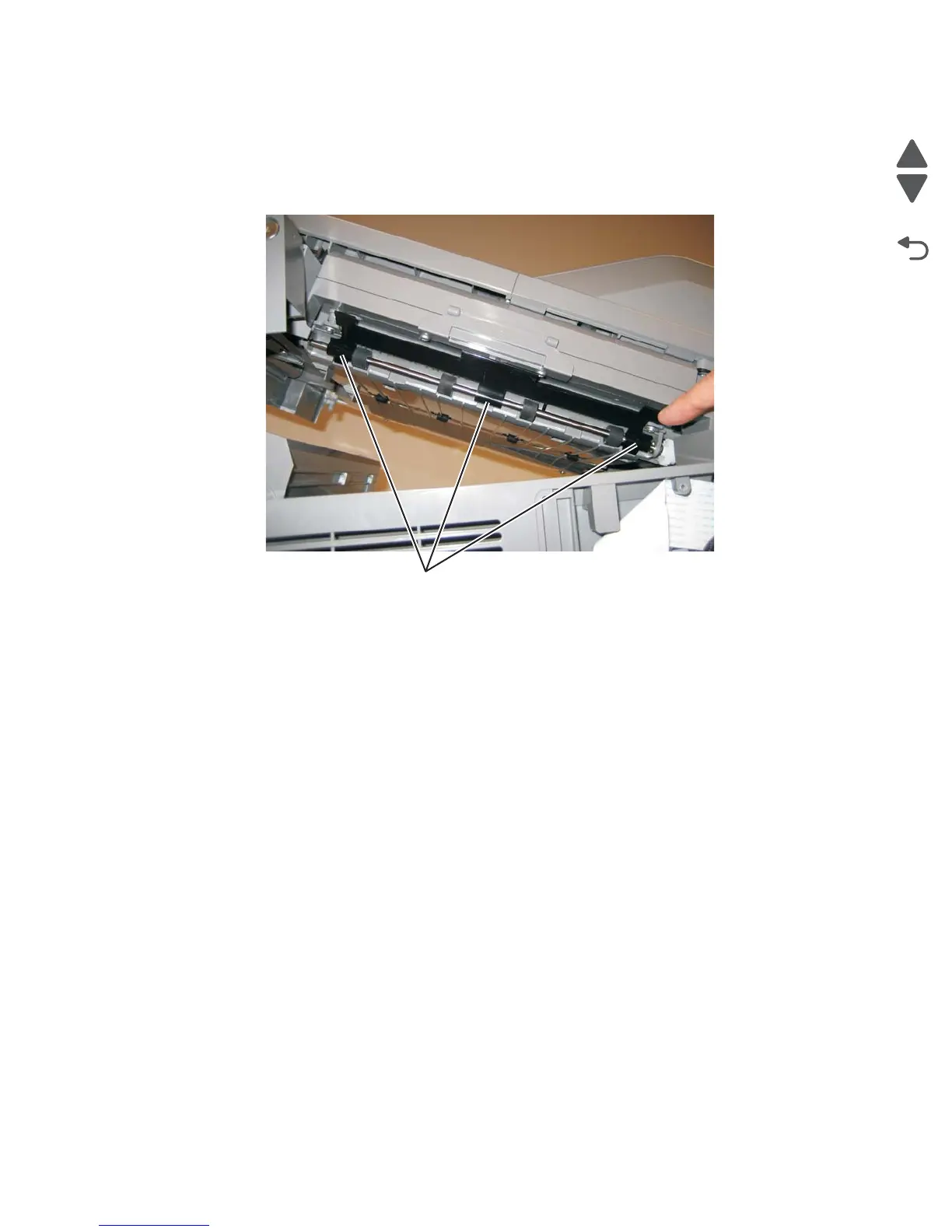

2. Gently disconnect the three snaps (A) from the rear shaft of the redrive unit.

3. Remove the bin full flag.
