AIO toner cover removal

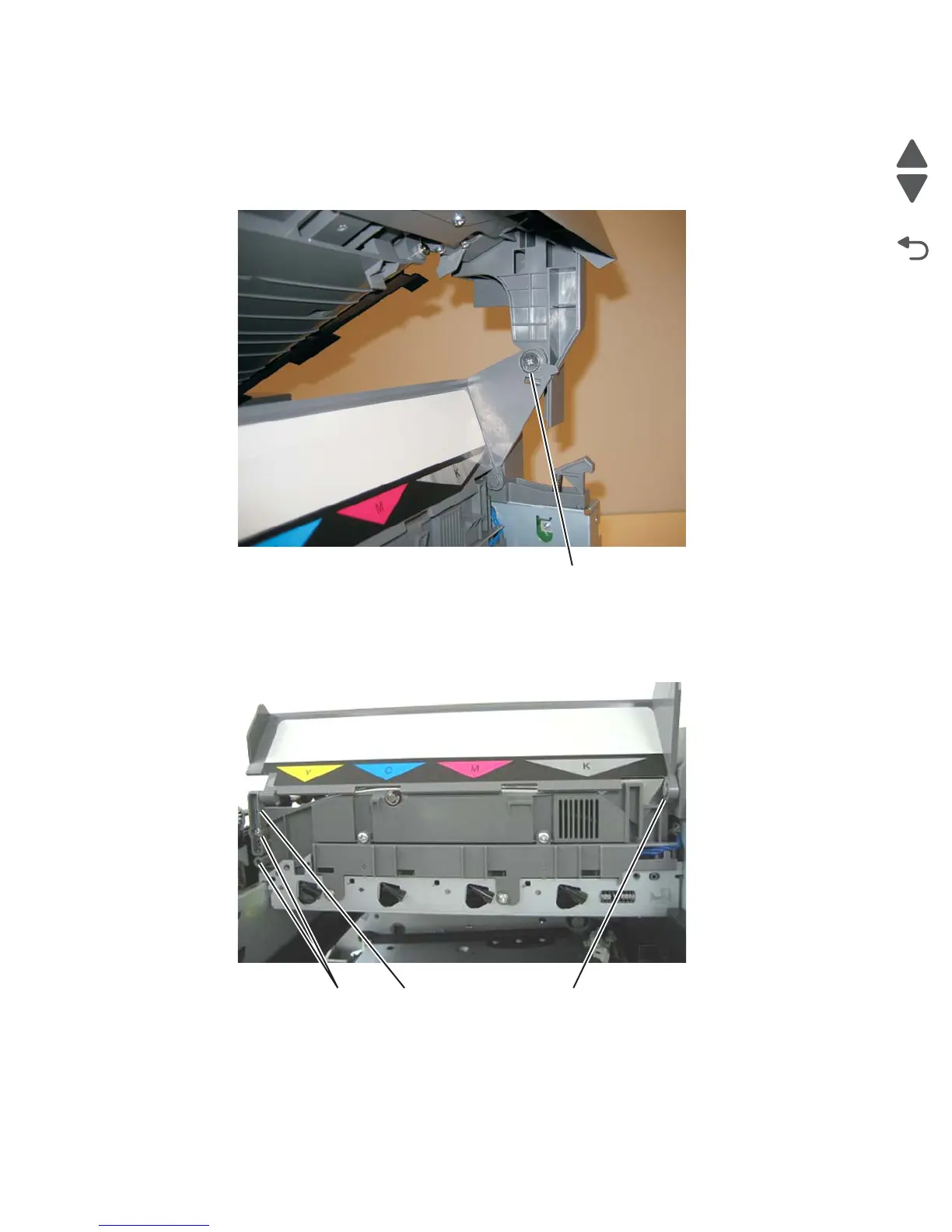

1. Lift the scanner unit to the up position.

2. Remove the screw (A) fastening the AIO toner cover to the scanner unit.

3. Remove the screws (B) securing the AIO hinge to the MFP.

4. Remove the hinge (C). Save this for the new AIO toner cover, or top cover.

5. Rotate the AIO toner cover so the tab (D) on the cover lines up with the hole on the AIO toner cover.

6. Pull the AIO toner cover to the left, and remove it from the printer.
