AIO back cable cover removal

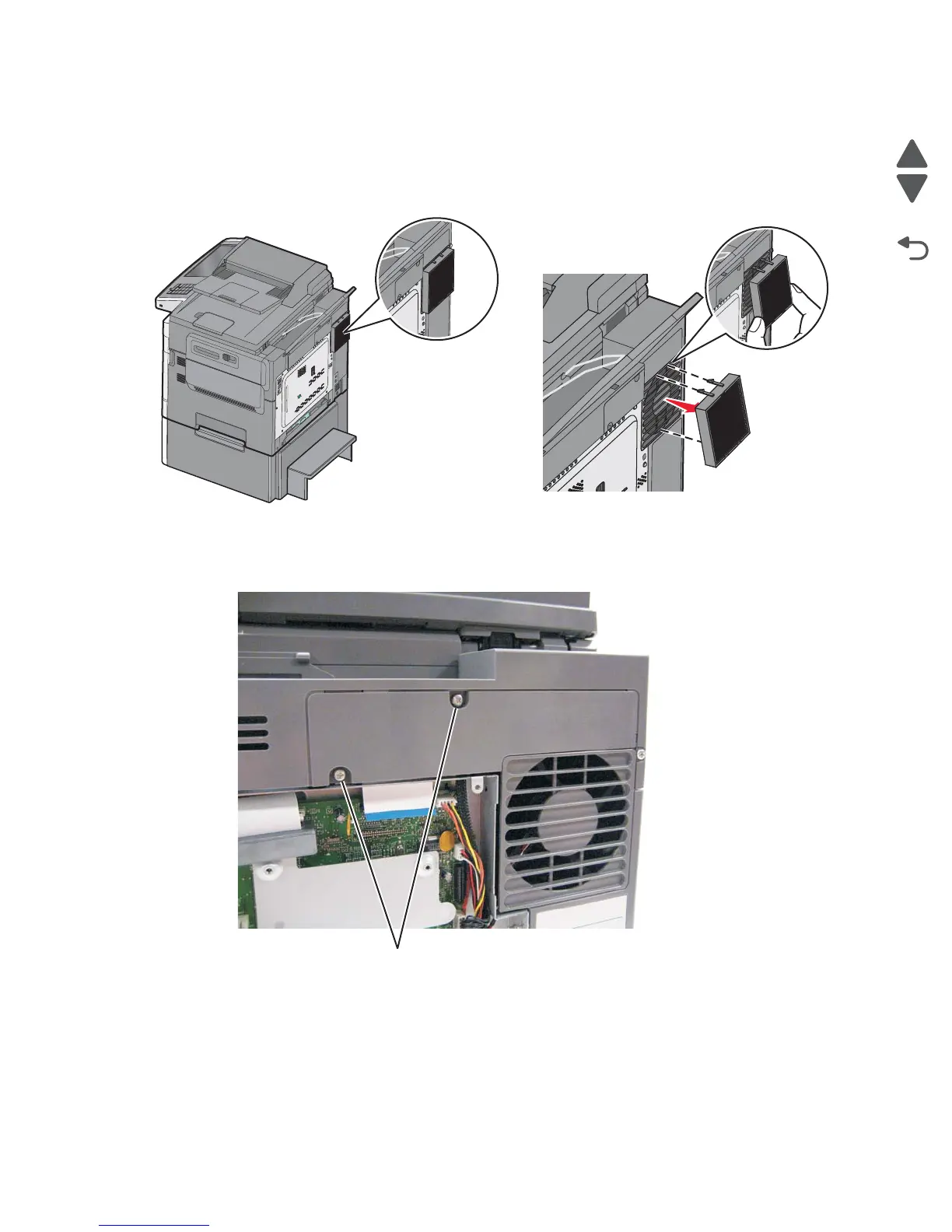

Note: Some printers may have a filter installed on the fan grill. Remove the filter first before continuing with the

removal procedure.

1. Remove the two screws (A) securing the AIO back cable cover to the MFP.
