Left lower frame and right lower frame removal
The left lower frame and right lower frame are in the same FRU.
Left lower frame
1.

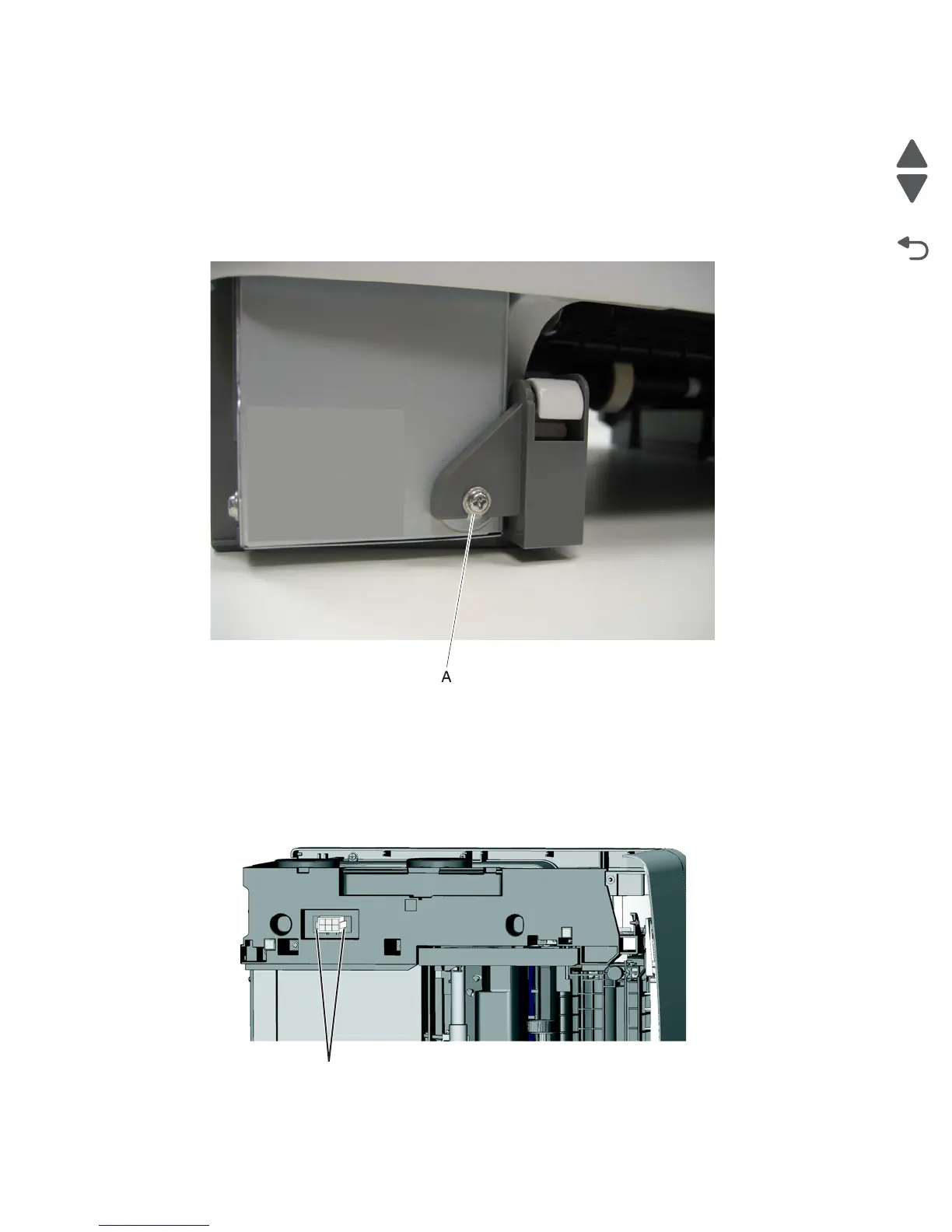

Remove the media tray, and remove the screw (A) in front.
2. Remove the waste toner bottle. See “Waste toner bottle removal” on page 4-73.
3. Remove the imaging unit. See “Imaging unit (IU) removal” on page 4-63.
4. Remove the low-voltage power supply. See “Low-voltage power supply (LVPS) assembly removal” on
page 4-48.
5. Place the printer on the right side.
6. Remove the tray 2 connector (B) by squeezing the tabs and lowering the connector into the printer.
B
