4-100 Service Manual

7525-63x

Go Back

LCD removal

1. Remove the operator panel bezel. See “Operator panel bezel removal” on page 4-104.

2. Remove the operator panel frame cover. See “Operator panel frame cover removal” on page 4-107.

3. Remove the rear case with speaker. See “Rear case with speaker removal” on page 4-108.

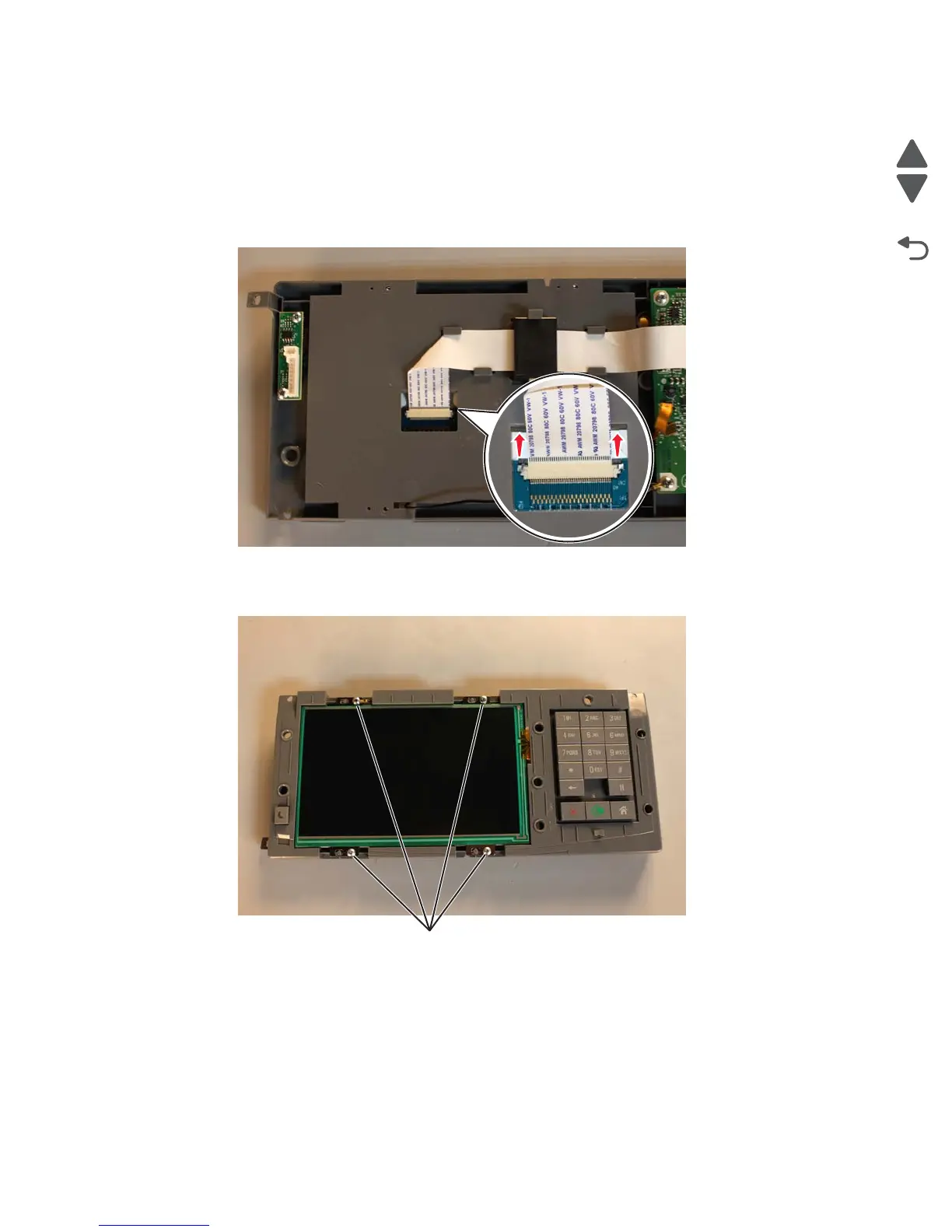

4. Release the two plastic locks to disconnect the LCD cable.

5. Remove the four screws (A) from the LCD.
