5. Locations

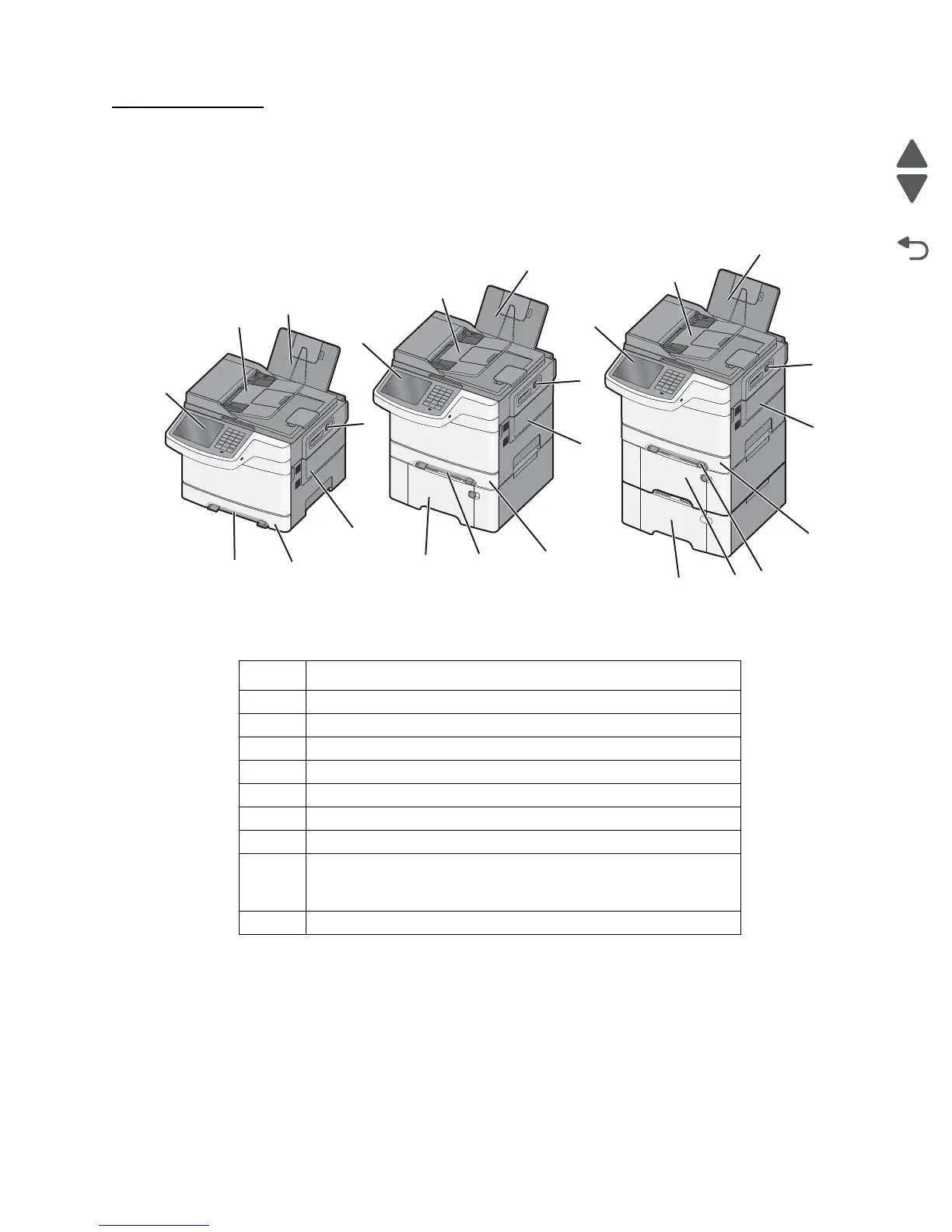

Exterior views

Front

Part name

1 Operator panel

2 Automatic Document Feeder (ADF)

3 Standard exit bin

4 Top door latch

5 Right side cover

6 Standard 250-sheet tray (Tray 1)

7 Manual feeder

8 650-sheet duo drawer with integrated multipurpose feeder (Tray 2)

Note: When used with the 550-sheet tray, the 650-sheet duo drawer

must be stacked in the exact position shown in the illustration.

9 Optional 550-sheet tray (Tray 3)
