4-86 Service Manual

7525-63x

Go Back

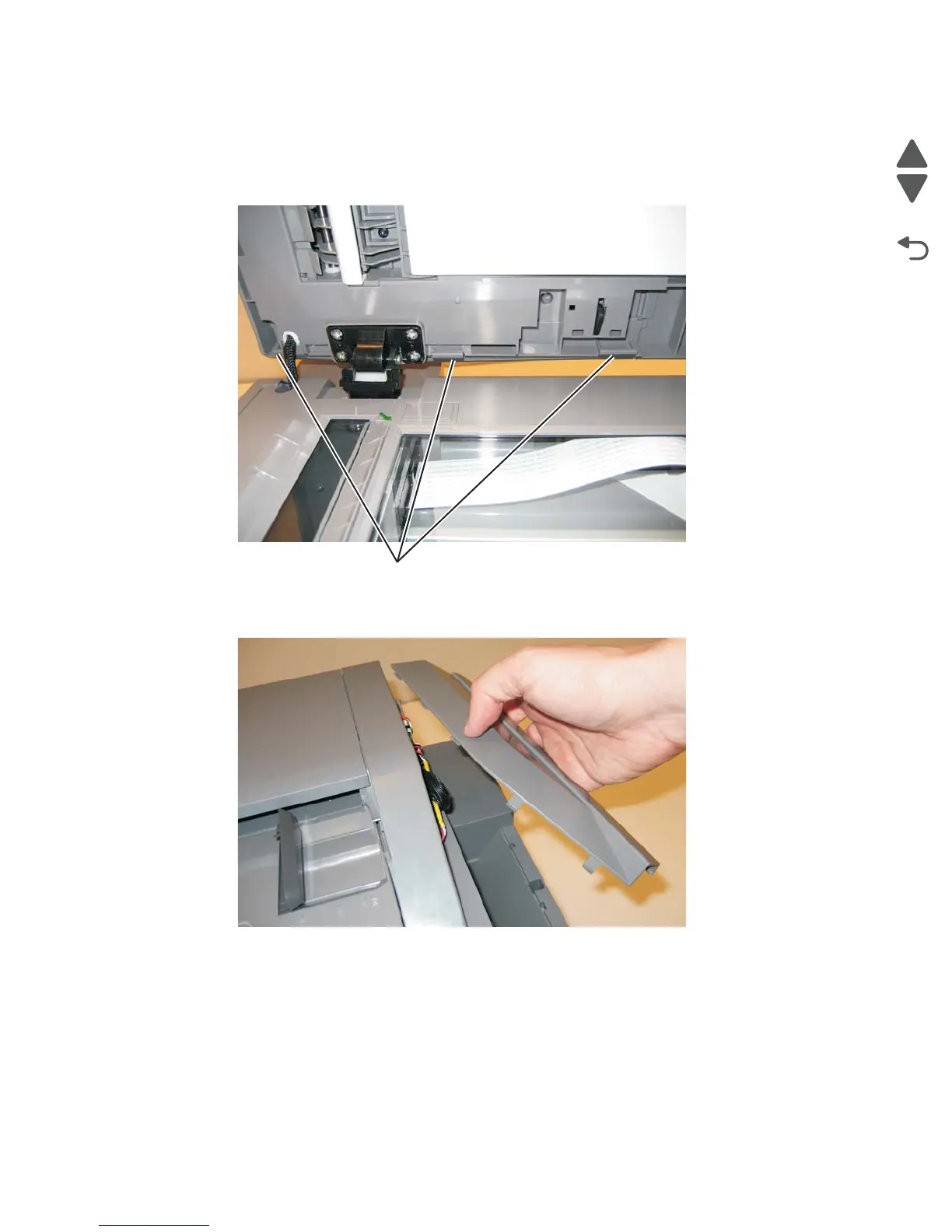

Duplex ADF rear cover removal

1. While lifting the ADF, use a flat-blade screwdriver to pry open the three tabs (A) on the bottom of the ADF

cover.

2. Lift and remove the rear cover from the ADF assembly.
