4-76 Service Manual
7525-63x

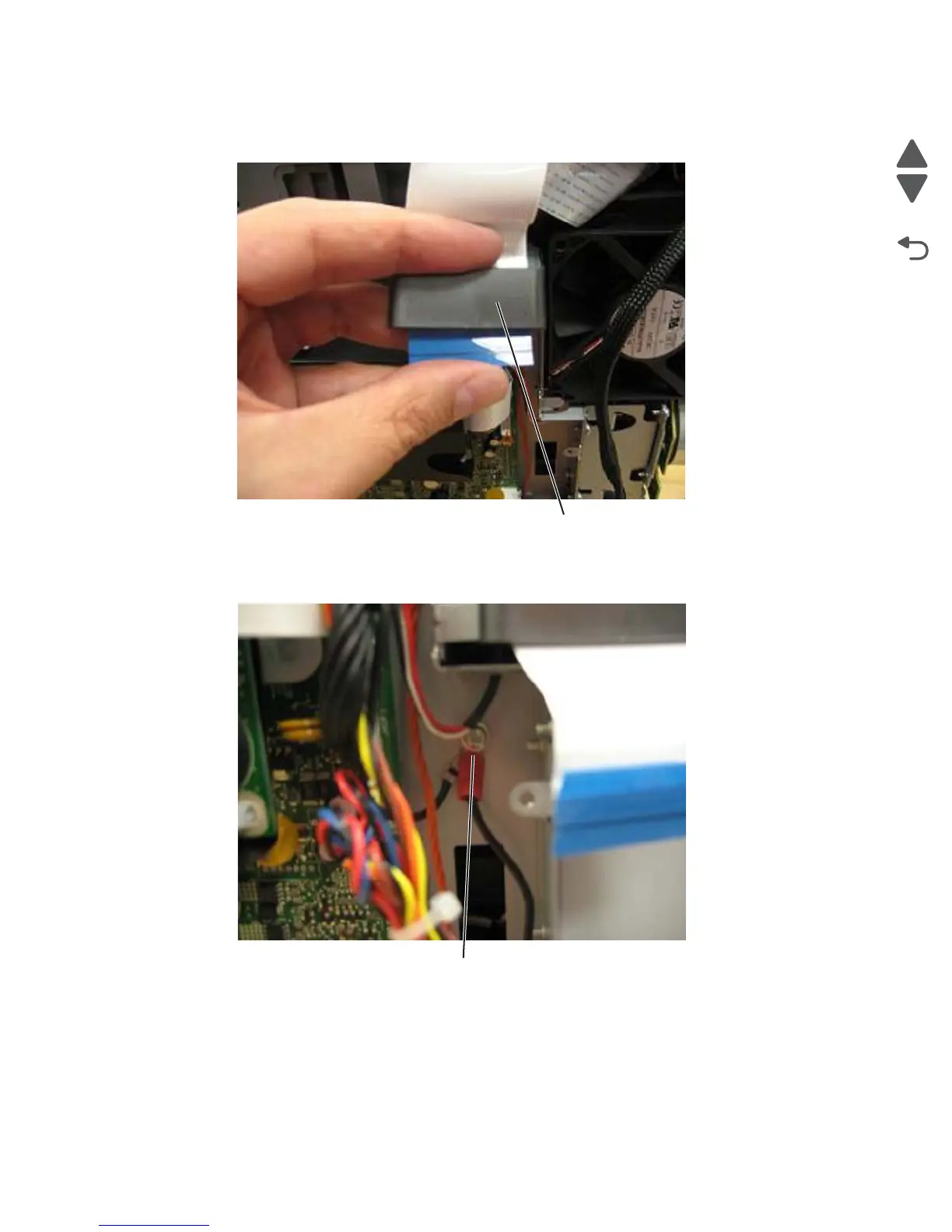

7. Remove the second toroid (B) from the toroid holder, and slide it off the CCD cable. This toroid will also be
reused on the new flatbed unit.
8. Remove the screw (C) that fastens the redrive ground cable and ADF ground cableground cable to the
frame.
9. Disconnect JADF1, and route the cable through the top of the card cage.
10. Disconnect the USB cable from JUSB1, op panel cable from JUIC1, flatbed home sensor cable from JHS1,
and flatbed motor cable from JFBM1. Route the cables through the right side of the card cage.
