Repair information 4-5

7525-63x

Go Back

Previous

Next

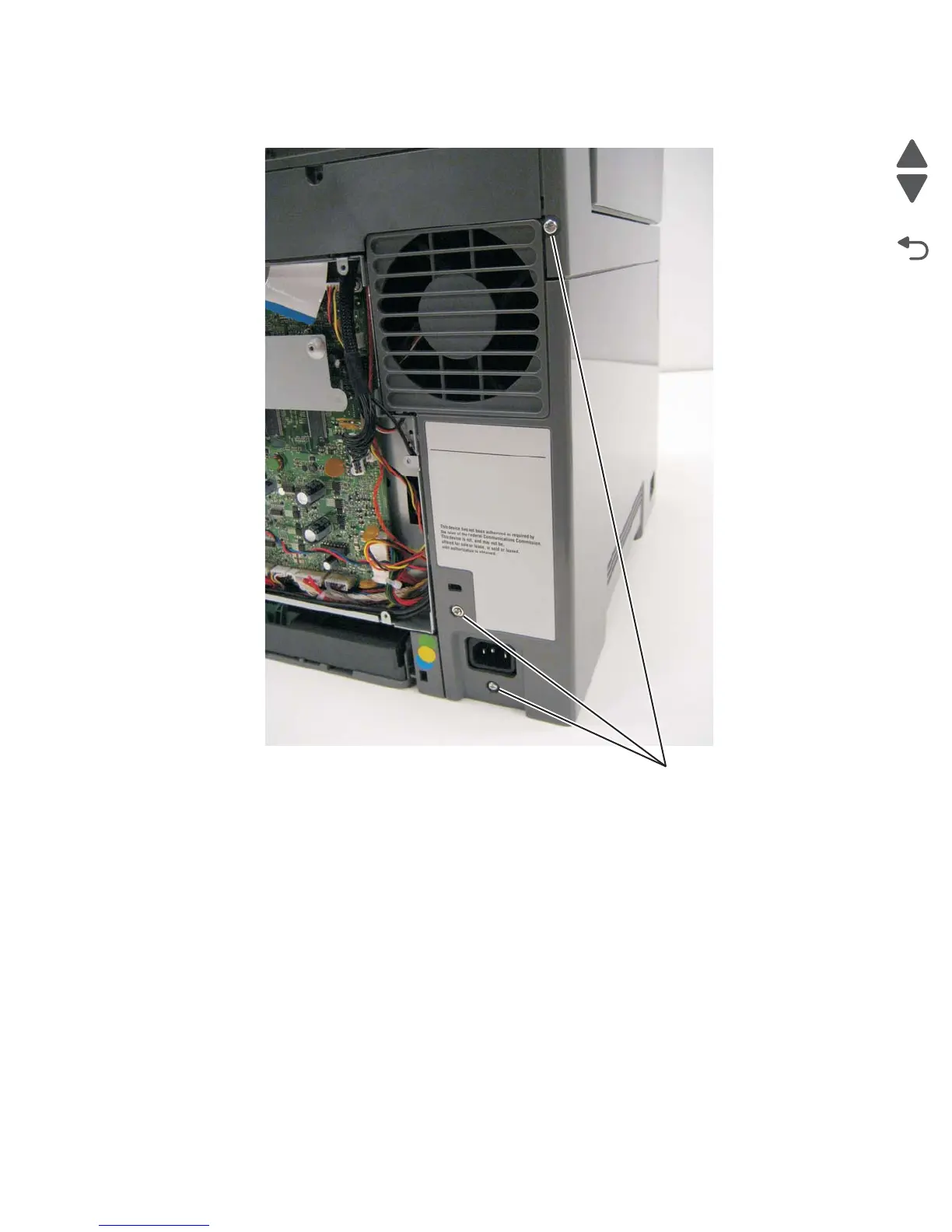

4. Remove the three screws (A) on the rear side of the left cover.

A
