Repair information 4-65

7525-63x

Go Back

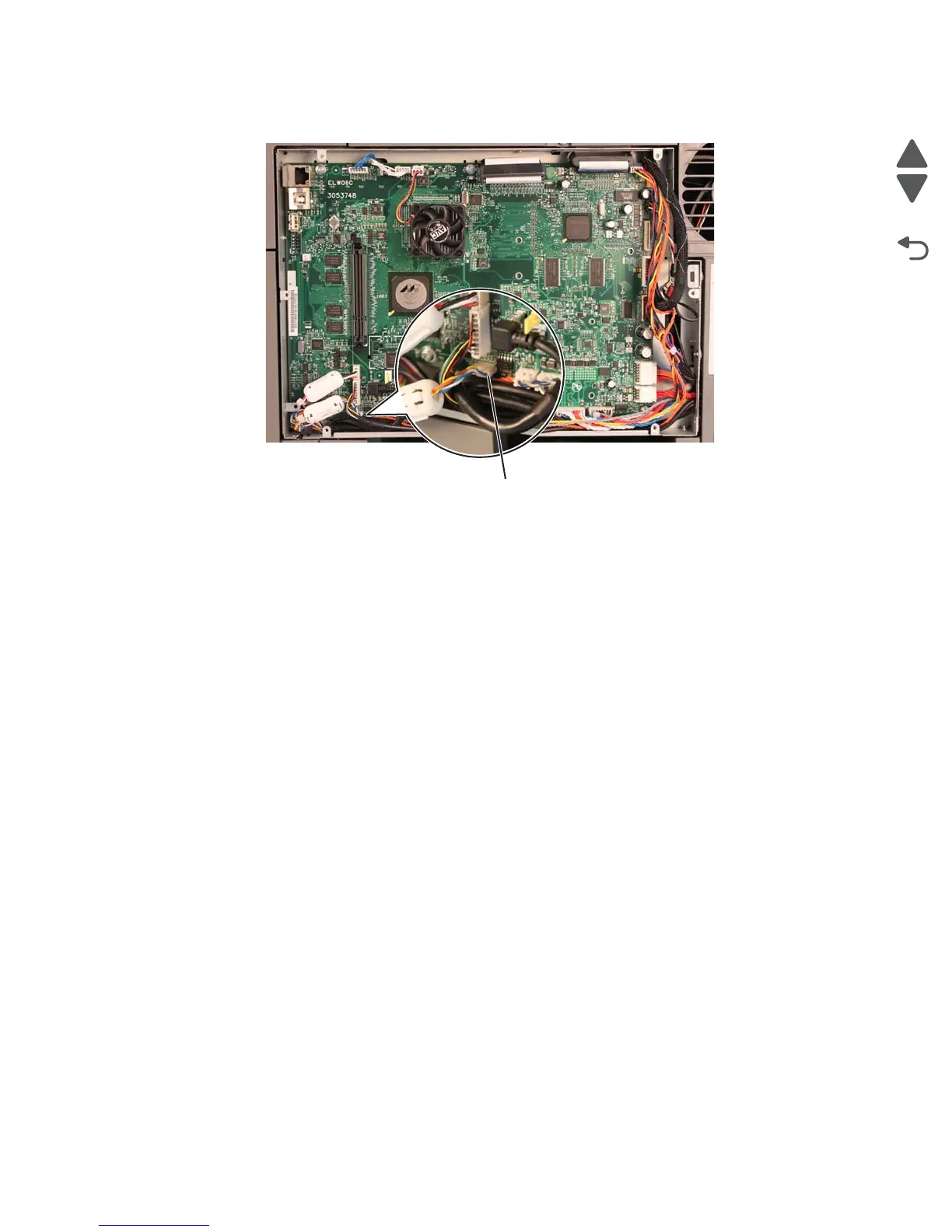

10. Disconnect the cable (E) from the RIP board at JSC1.

11. Remove the cable from the retainer on the bottom of the printer.

12. Extract the cable through the frame, and remove the cable with the spring contacts.
