Lexmark X548 Series

To Next Page

To Previous Page

4-24 Service Manual

7525-63x

Go Back

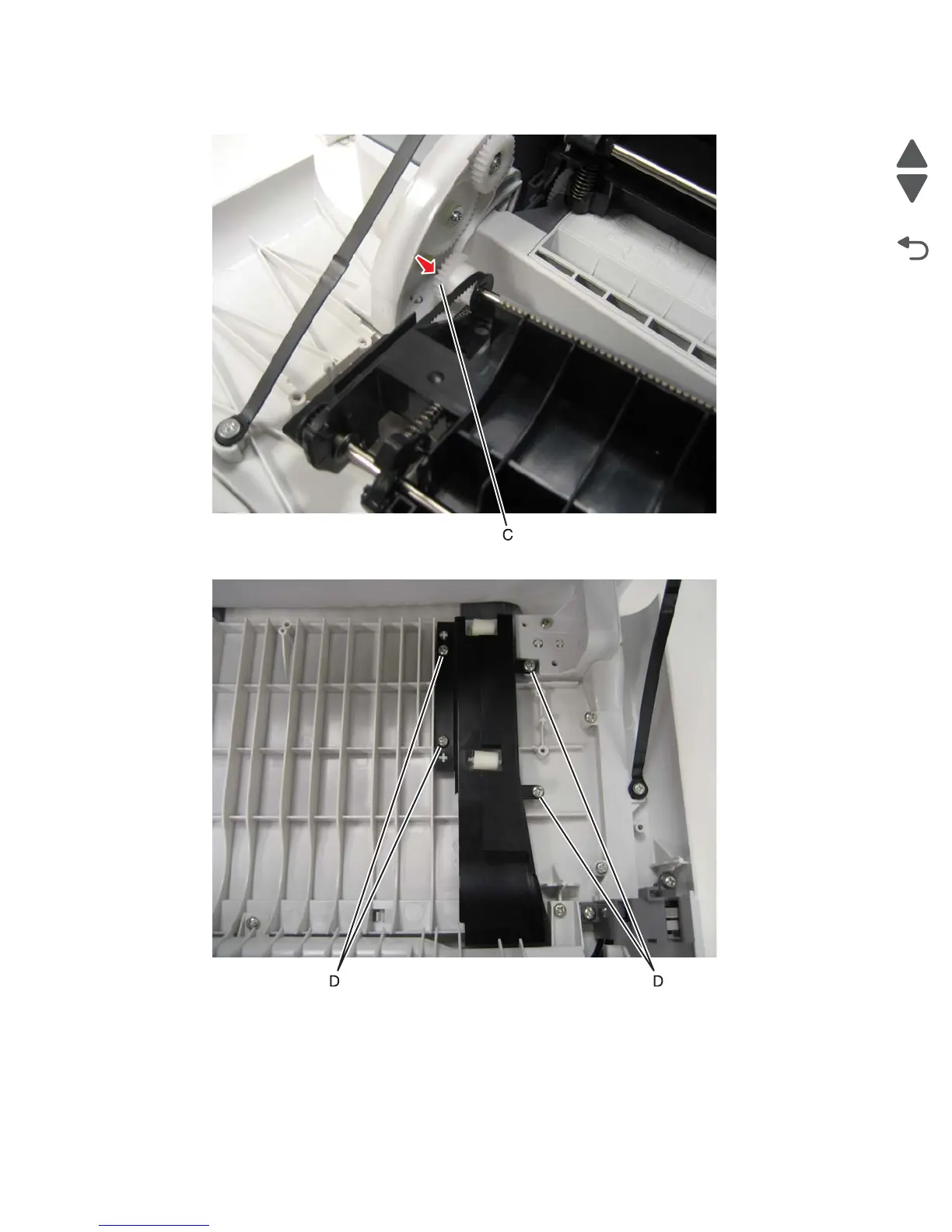

3. Lift the duplex aligner on the right side, and disengage the gears (C) on the left.

4. Remove the four screws (D) from the duplex reference guide, and remove the guide.
