4-90 Service Manual

7525-63x

Go Back

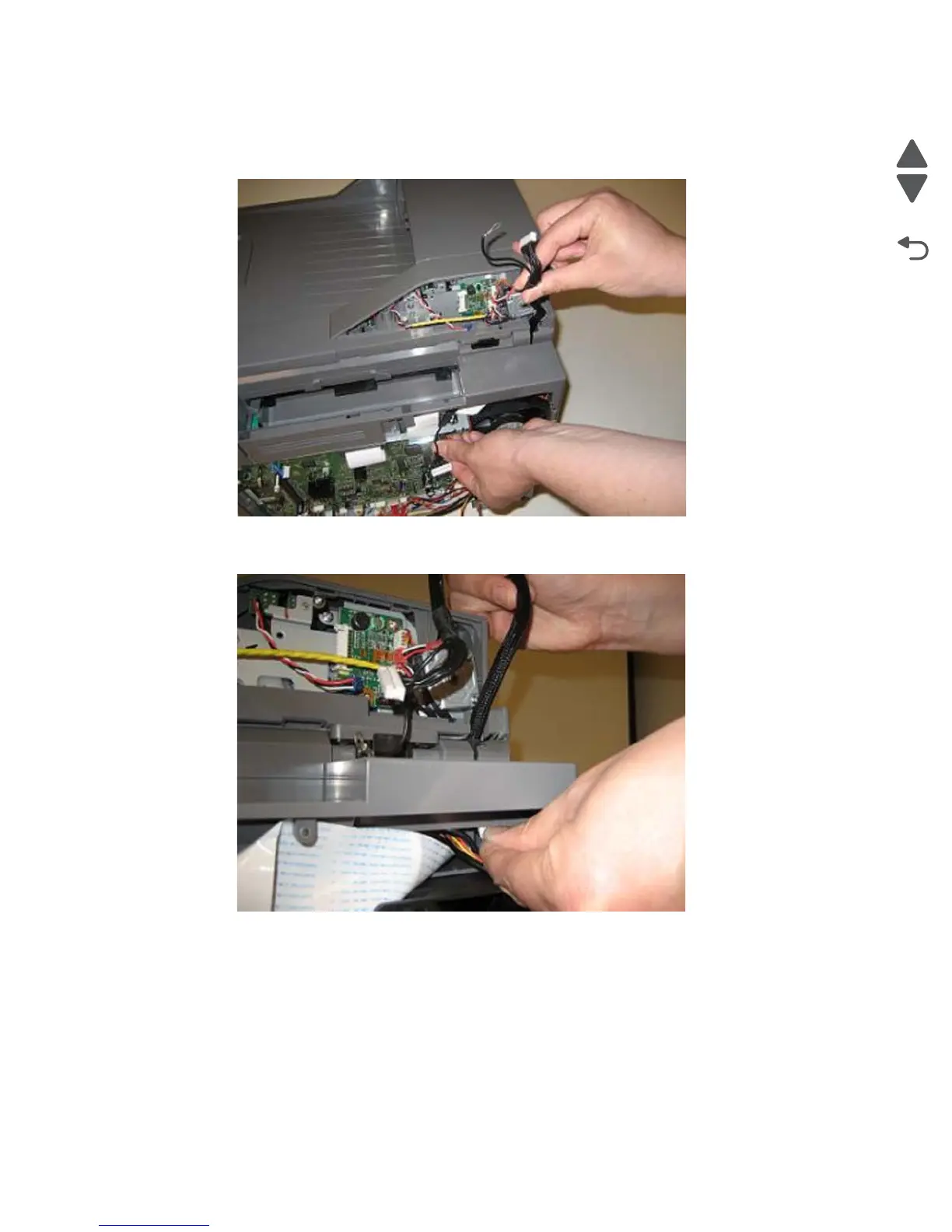

9. With your right hand, pull the relay card end of the ADF cable up and away from the ADF while using your

left hand to guide the ADF cable up through the card cage opening.

Note: Be careful to avoid contact with the CCD ribbon cable.

10. Feed the ADF cable up between the left flatbed cover and flatbed unit, and gently pull the cable up.
