4-20 Service Manual

7525-63x

Go Back

Previous

Next

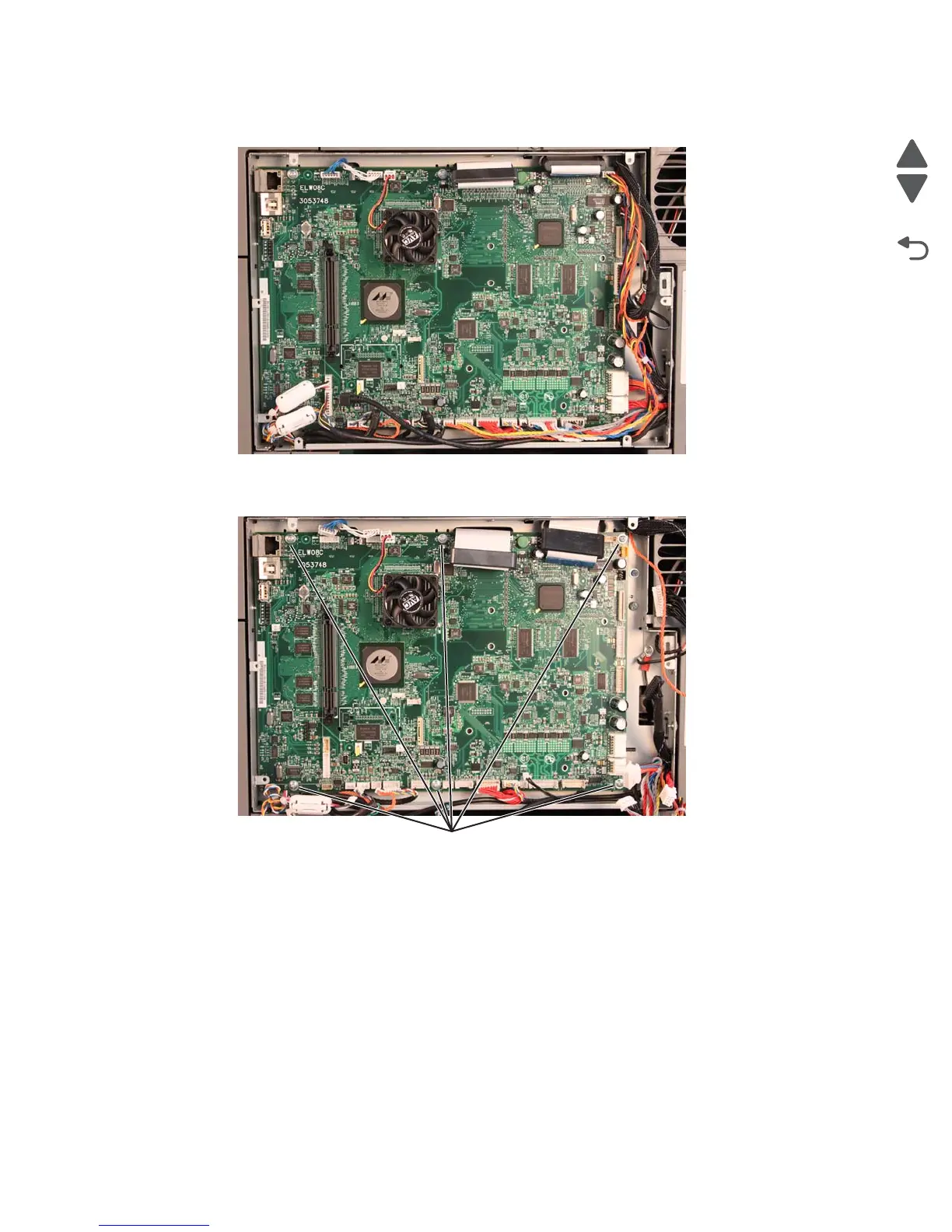

5. Disconnect all the cables from the RIP board.

6. Remove the six screws (B) securing the RIP board to the RIP board cage.

B
