Repair information 4-33

7525-63x

Go Back

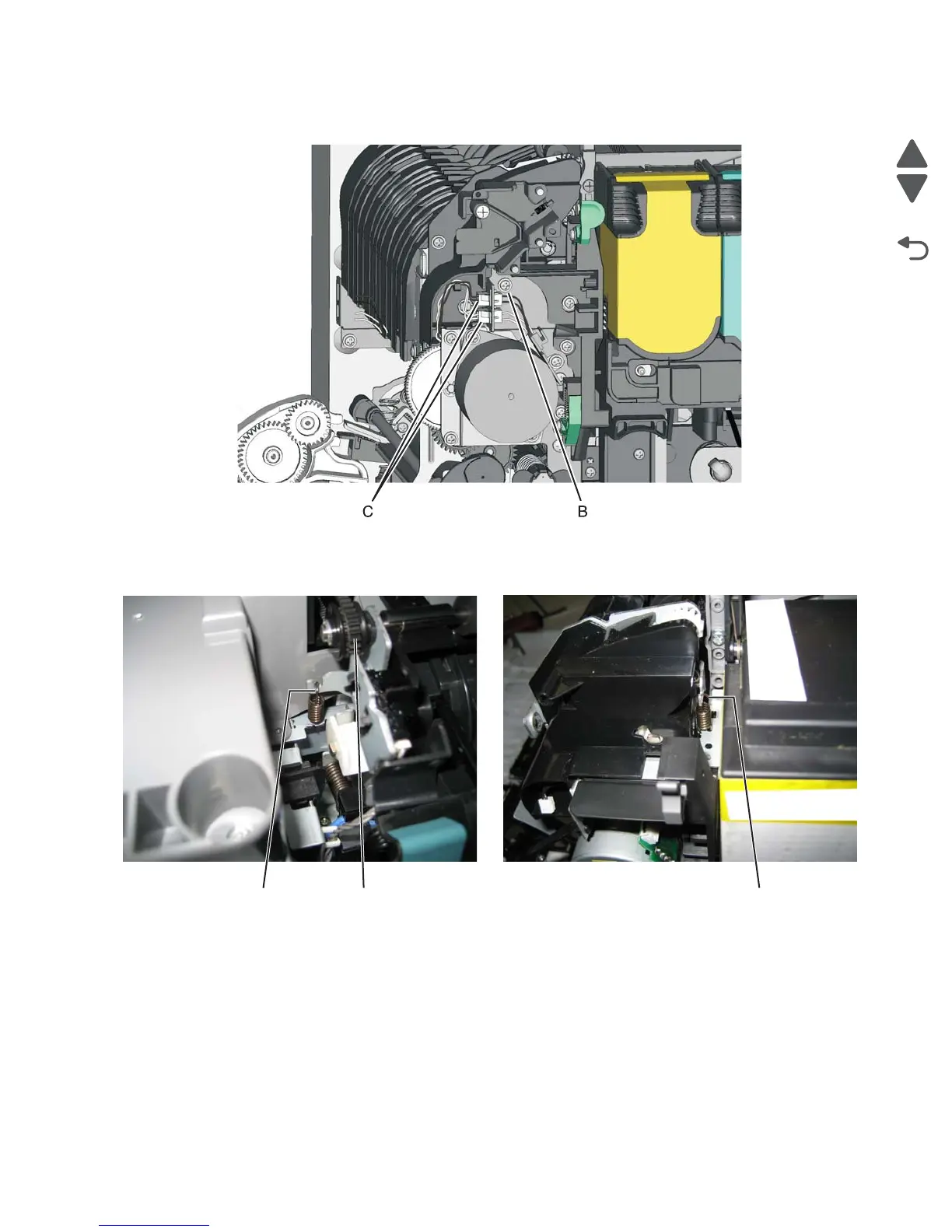

6. Disconnect the two thermistor cables (C) from the fuser.

7. Unhook the springs (D) from either side of the fuser.

8. Detach the geared belt (E) from the drive pulley on the fuser exit roll shaft.

Note: Do not remove the pulley or spacer from the shaft.

9. Rotate the top of the fuser toward the front, slide it to the left to align the fuser side frame with the flat areas

of the shaft (F) and lift to remove the fuser.
