4-44 Service Manual

7525-63x

Go Back

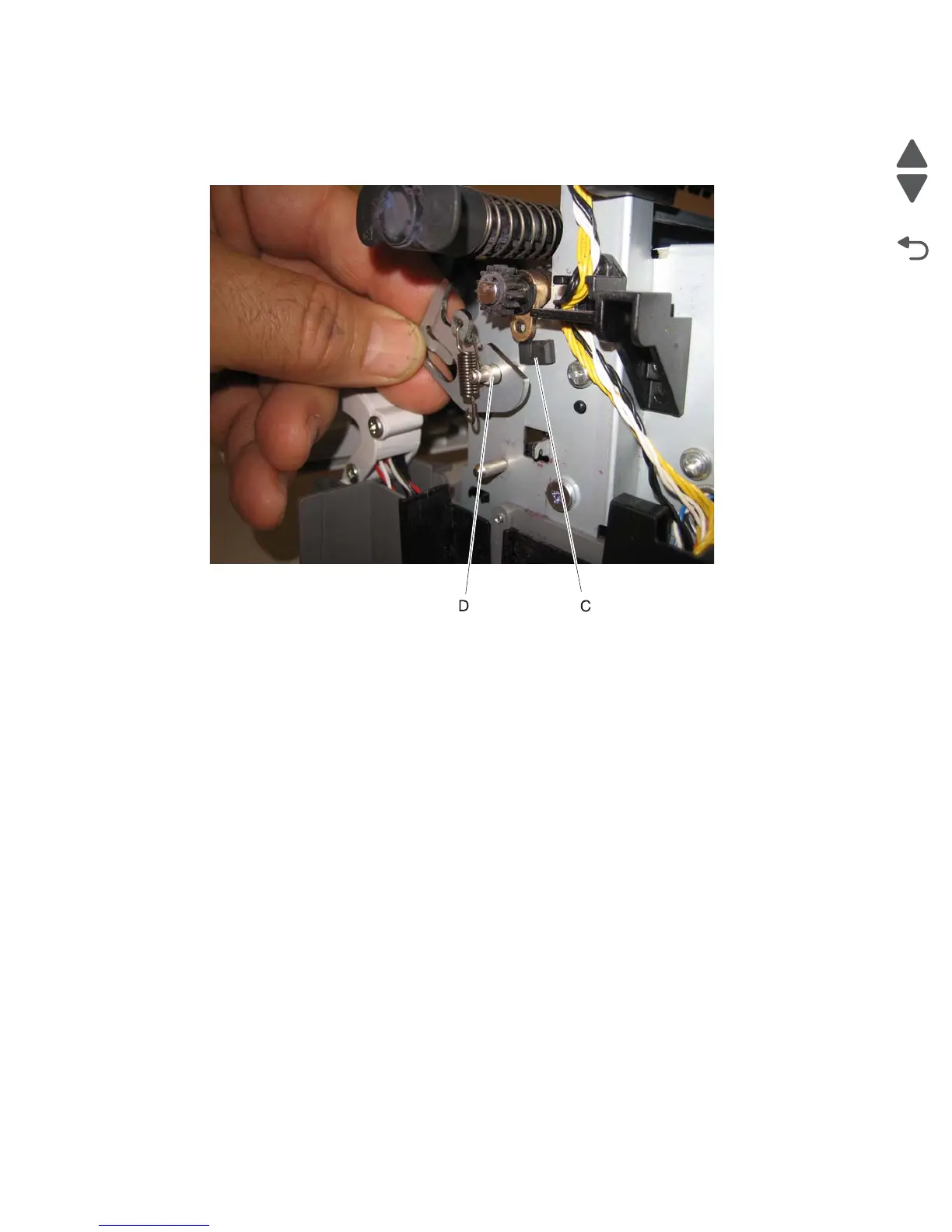

2. Remove the rubber pad (C).

3. Place the spring clamp onto the shaft (D).

4. Snap the new gear onto the shaft (D). The installation is the same as the old gear.
