Lexmark X548 Series

To Next Page

To Previous Page

4-52 Service Manual

7525-63x

Go Back

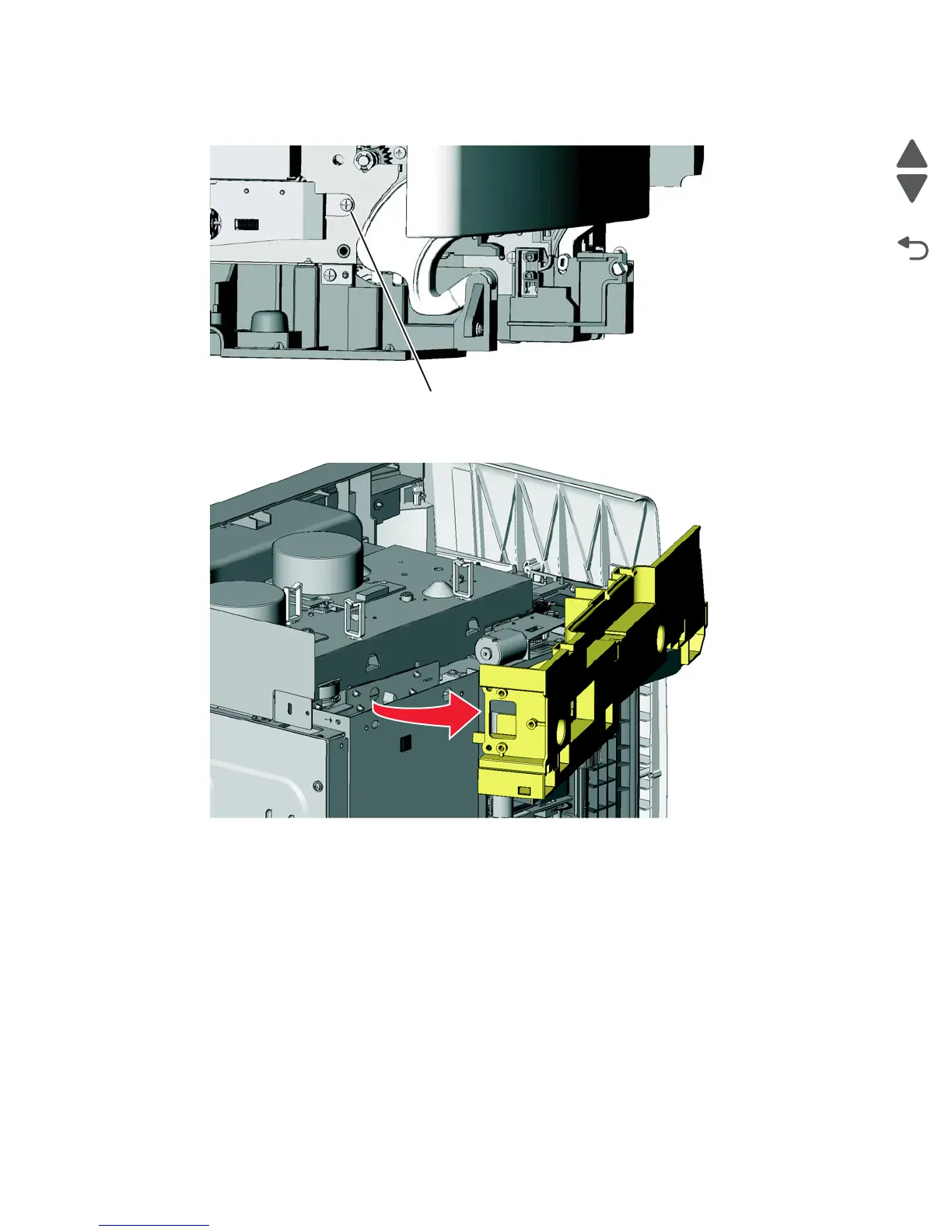

10. Remove the screw (F) on top of the frame.

11. Swing the left lower frame away from the printer, and remove.
