Repair information 4-59

7525-63x

Go Back

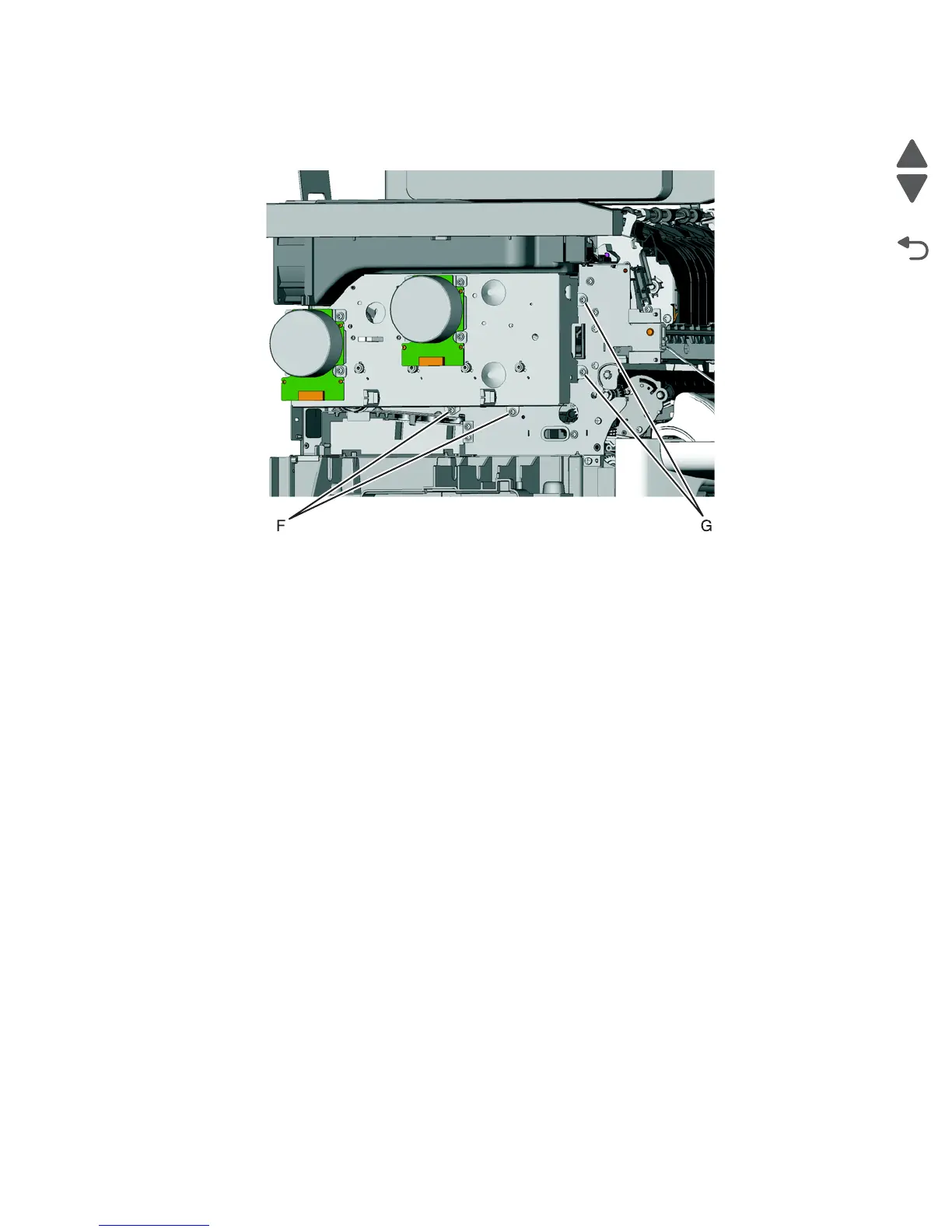

9. Remove the two screws (F) from below the main drive gear assembly.

10. Remove the two screws (G) from the right of the main drive gear assembly.

11. Lift the main drive gear assembly with motor, and remove.
