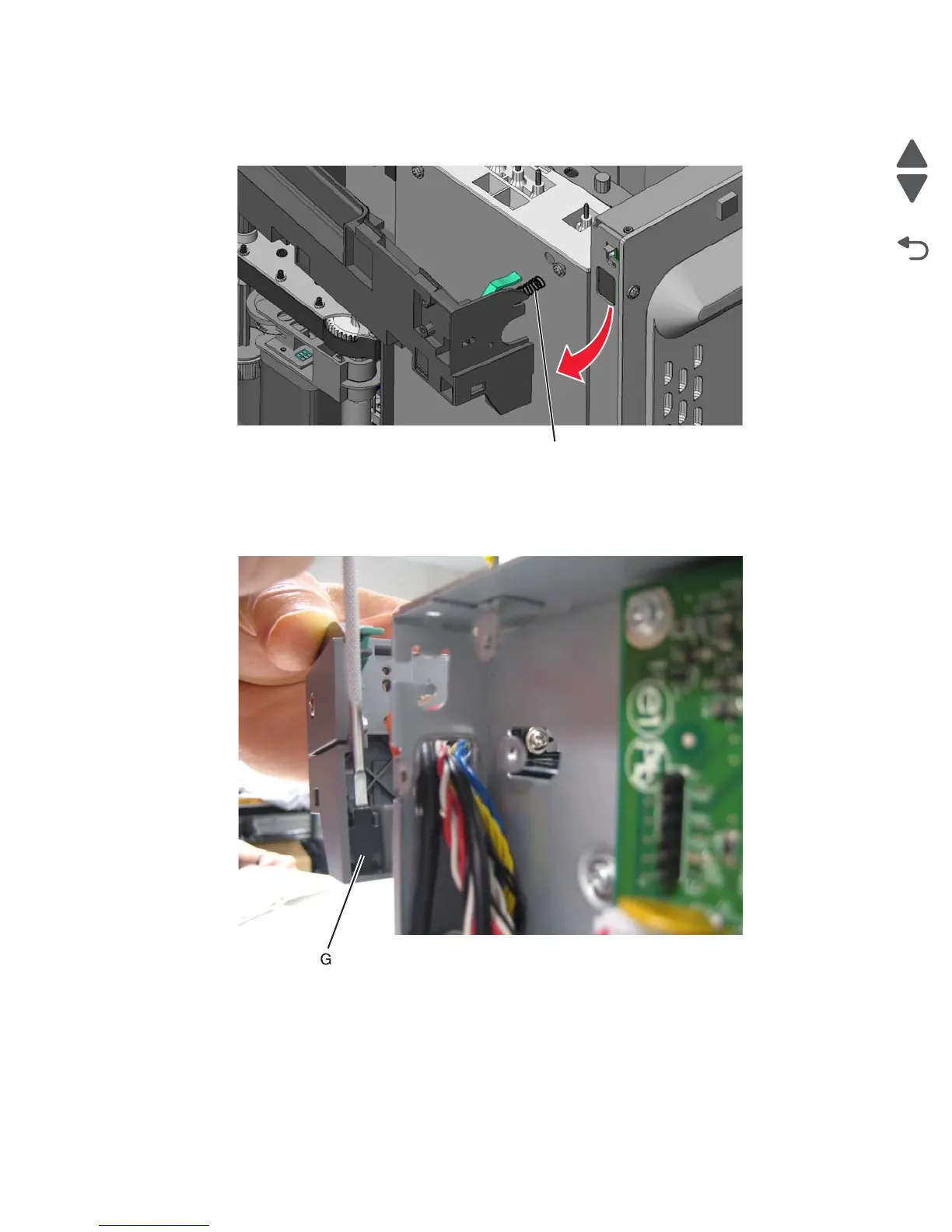

10. Remove and secure the spring (F) from the right lower frame.

Note: The spring easily gets lost.

11. Disconnect the tray present sensor cable.

12. Remove the sensor retaining plate (G), and then squeeze the latches together to remove the tray present

sensor.

Installation notes:

1. Clean the contact surface where you removed the sensor retaining plate, or where you need to install the

new one.

2. Install the sensor.

3. Make sure the clips on the posts latch to the frame.

Default Chapter3
