Repair information 4-83

7525-63x

Go Back

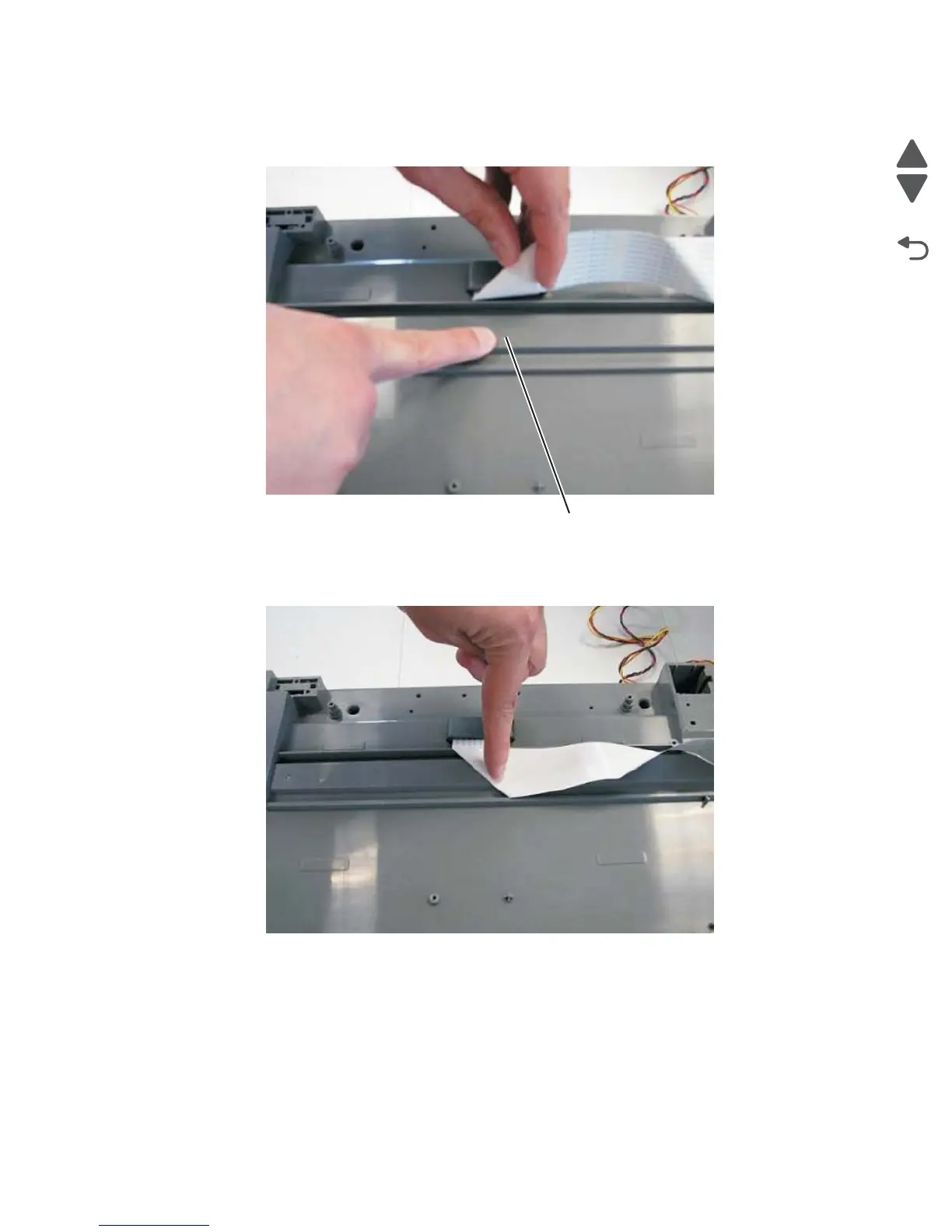

3. Locate the folding guide line (B), and remove the paper backing from the adhesive strip located next to the

folding guide line on the scanner.

4. Fold the ribbon cable as shown. Align the fold of the cable with the folding guide line on the flatbed. Press

down the cable so that it sticks to the adhesive strip.
