Repair information 4-95

7525-63x

Go Back

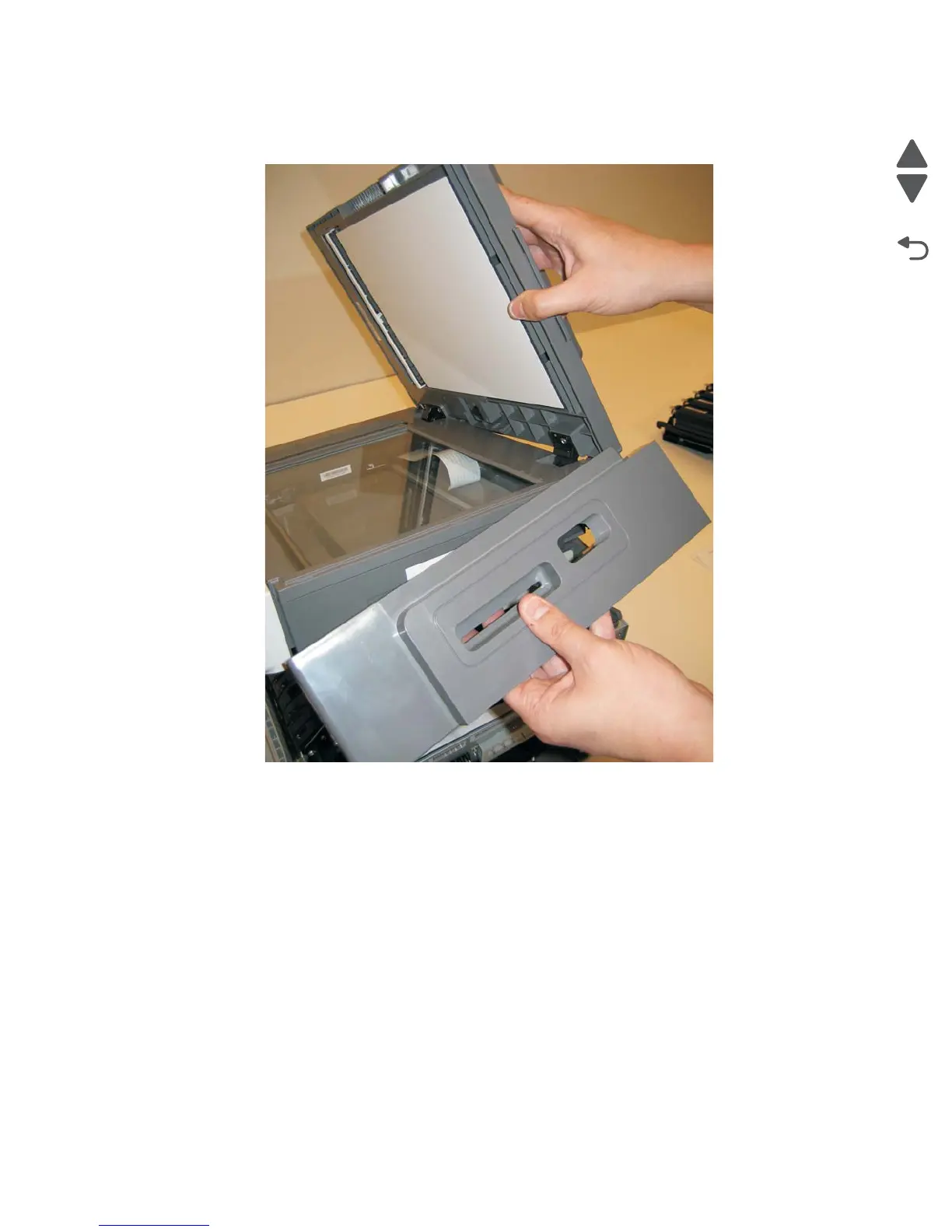

4. While holding the ADF away from the flatbed, use the other hand to lift and disengage the right scanner

cover from the flatbed unit.
