Security Management
318
Managed Switches
c. Enter the following information:
• In the IP Address field, enter 192.168.1.1.
• In the Subnet Mask field, enter 255.255.255.0.
• In the Routing Mode field, select Enable.
d. Click Apply to save the settings.
3. Assign IP address 10.100.5.33/24 to interface 1/0/19:

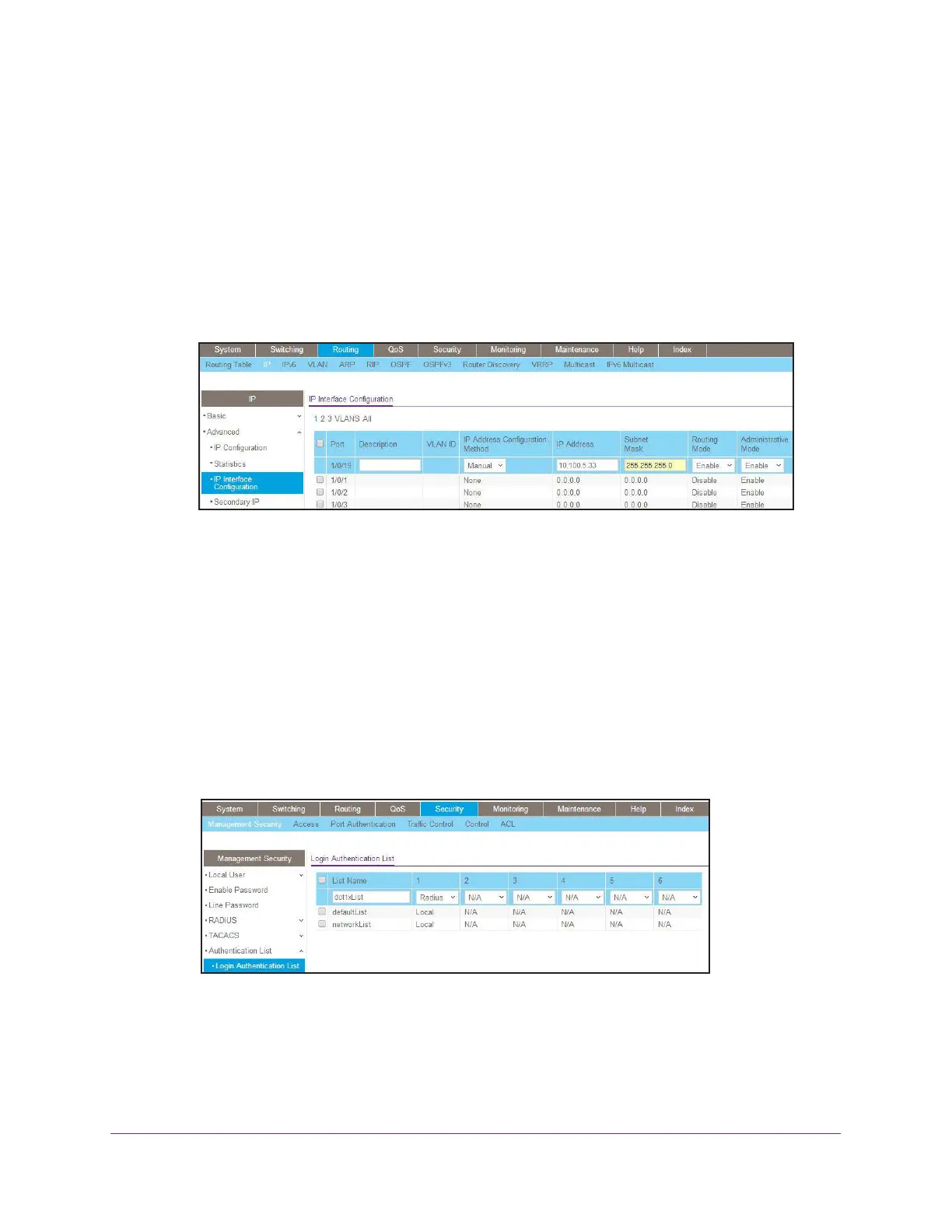

a. Select Routing > Advanced > IP Interface Configuration.
A screen similar to the following displays.
b. Scroll down and select the interface 1/0/19 check box.
Now 1/0/19 appears in the Interface field at the top.
c. Enter the following information:
• In the IP Address field, enter 10.100.5.33.
• In the Subnet Mask field, enter 255.255.255.0.
• In the Routing Mode field, select Enable.
d. Click Apply to save the settings.
4. Create an authentication name list.
a. Select Security > Management Security > Login > Authentication List.
A screen similar to the following displays.
b. Select the check box before dot1xList.
c. In the 1 list, select Radius.
d. Click Apply.
5. Set port 1/0/19 to force authorized mode. (In this case, the RADIUS server is connected to
this interface.)
