OSPF

125

Managed Switches

Web Interface: Configure Area 1 as an NSSA Area on A1

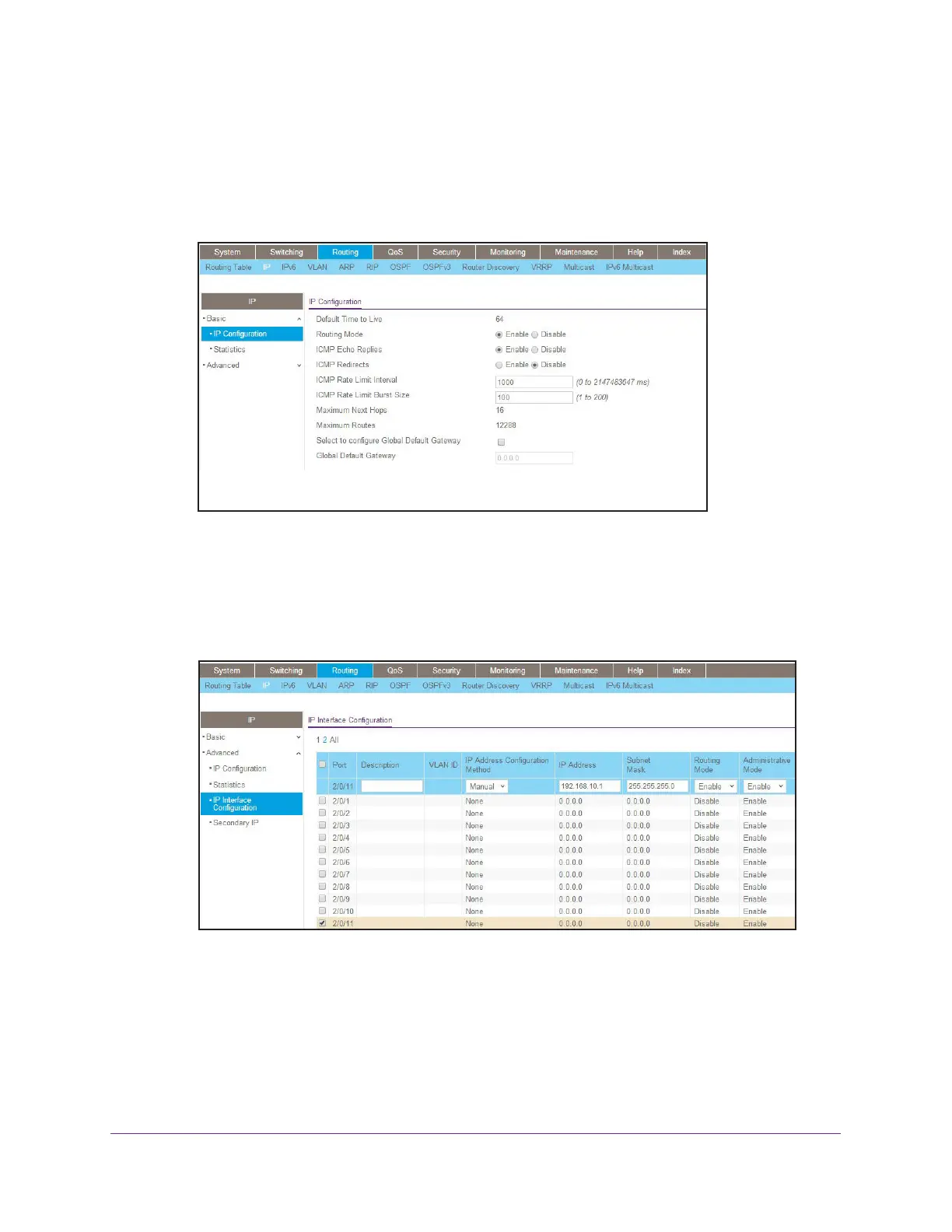

1. Enable IP routing on the switch.

a. Select Routing > IP > Basic > IP Configuration.

A screen similar to the following displays.

b. For Routing Mode, select the Enable radio button.

c. Click Apply to save the settings.

2. Assign IP address 192.168.10.1 to port 2/0/11.

a. Select Routing > IP > Advanced > IP Interface Configuration.

A screen similar to the following displays.

b. Scroll down and select the interface 2/0/11 check box.

Now 2/0/11 appears in the Interface field at the top.

c. Enter the following information:

• In the IP Address field, enter 192.168.10.1.

• In the Network Mask field, enter 255.255.255.0.

• In the Admin Mode field, select Enable.
