SNTP

396

Managed Switches

Web Interface: Configure SNTP

1. Configure the SNTP server.

a. Select System > Management >Time > SNTP Server Configuration.

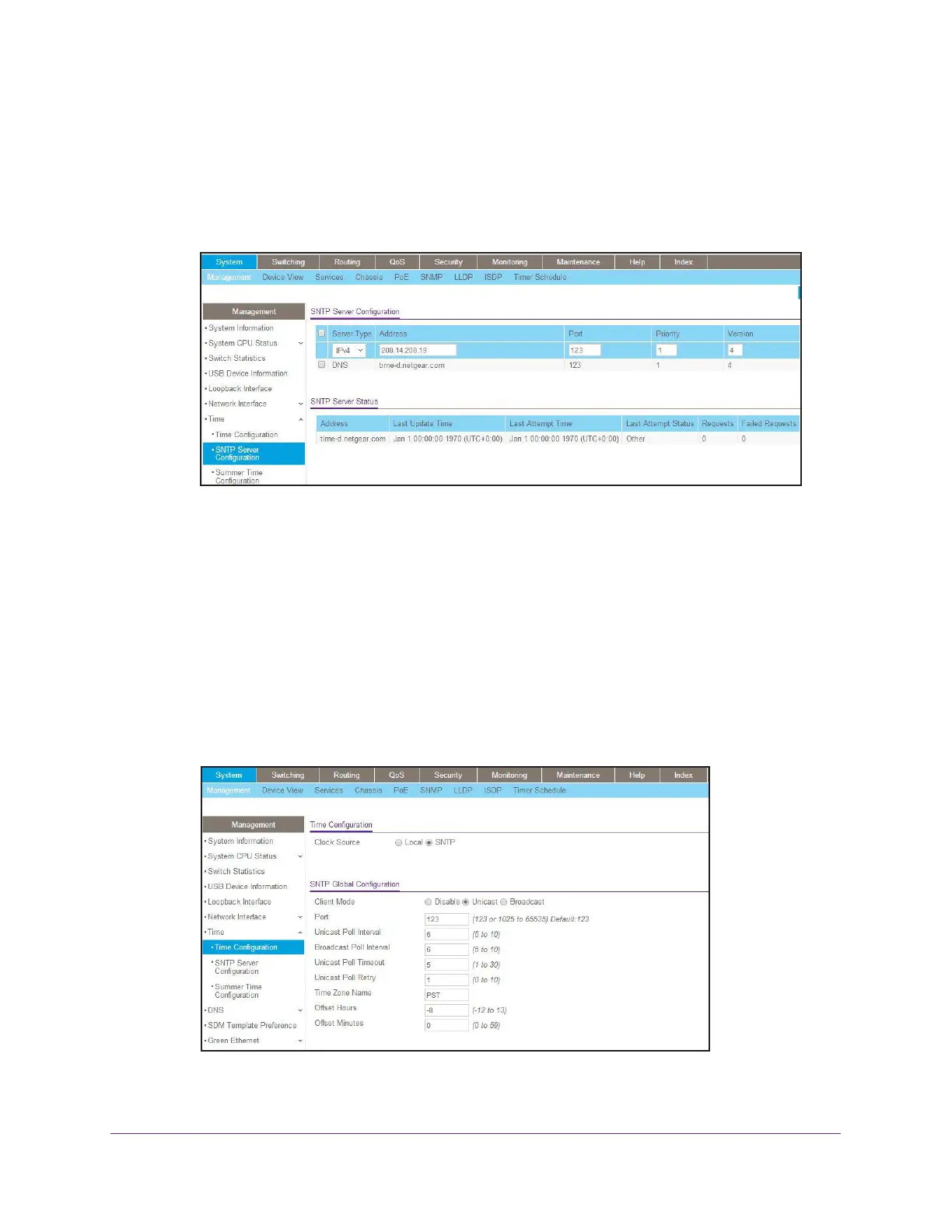

A screen similar to the following displays.

b. Enter the following information:

• In the Server Type field, select IPV4.

• In the Address field, enter 208.14.208.19.

• In the Port field, enter 123.

• In the Priority field, enter 1.

• In the Version field, enter 4.

c. Click Add.

2. Configure SNTP globally.

a. Select System > Management > Time > SNTP Global Configuration.

A screen similar to the following displays.
