Web Interface: Configure Multiple STP (802.1s)
1. Enable 802.1s on the switch.
a. Select Switching > STP > STP Configuration.

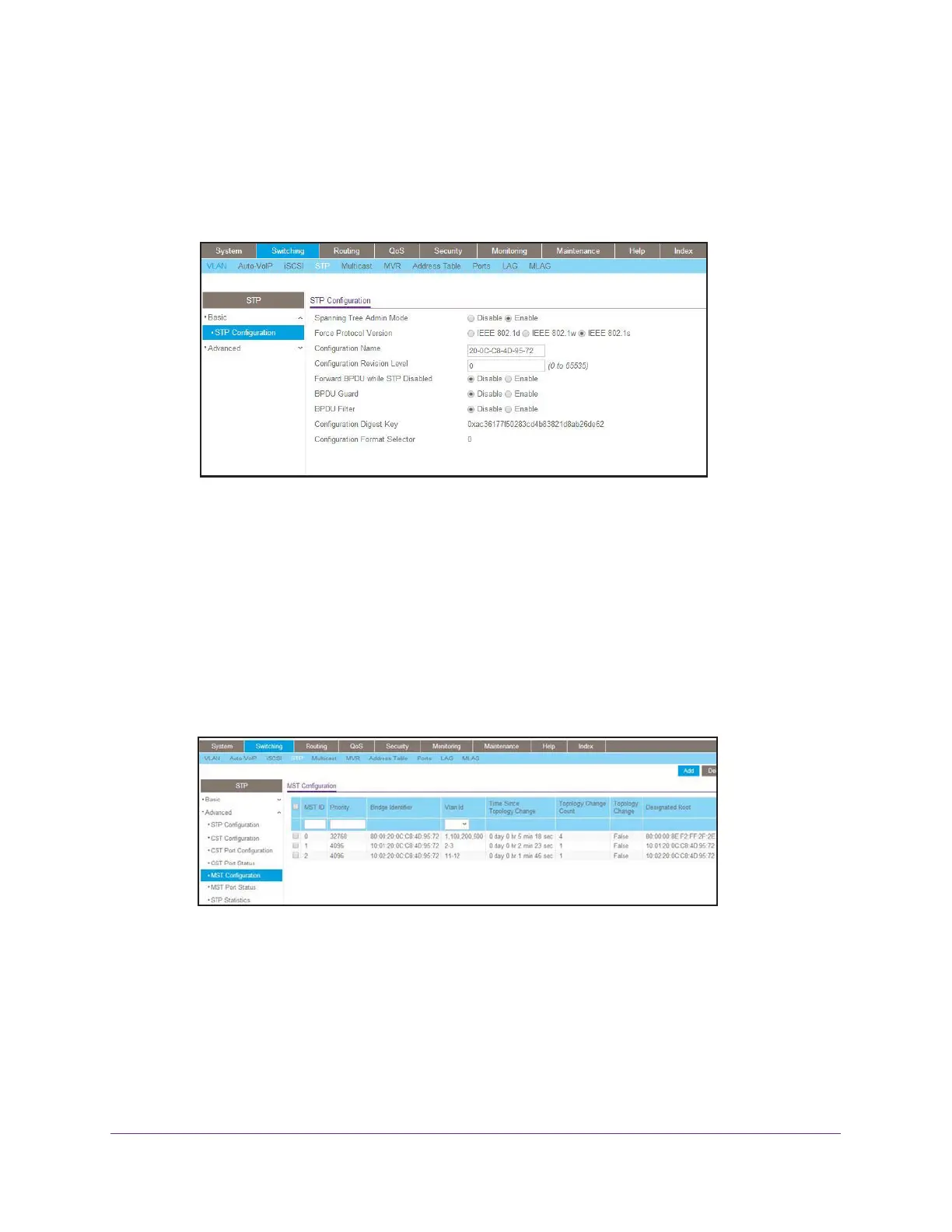

A screen similar to the following displays.
b. Enter the following information:
• For Spanning Tree Admin Mode, select the Enable radio button.
• For Force Protocol Version, select the IEEE 802.1s radio button.
• In the Configuration Name field, enter mstp_1.
• In the Configuration Revision Level field, enter 0.
c. Click Apply.
2. Configure MST.
a. Select Switching > STP > MST Configuration.
A screen similar to the following displays.
b. Configure MST ID 1.
• In the MST ID field, enter 1.
• In the Priority field, enter 4096.
• In the VLAN Id field, enter 2.
• Click Add.
• In the VLAN Id field, enter 3.
• Click Apply.
