NETGEAR M4200

To Next Page

To Previous Page

OSPF

104

Managed Switches

Web Interface: Configure an Inter-area Router

1. Enable IP routing on the switch.

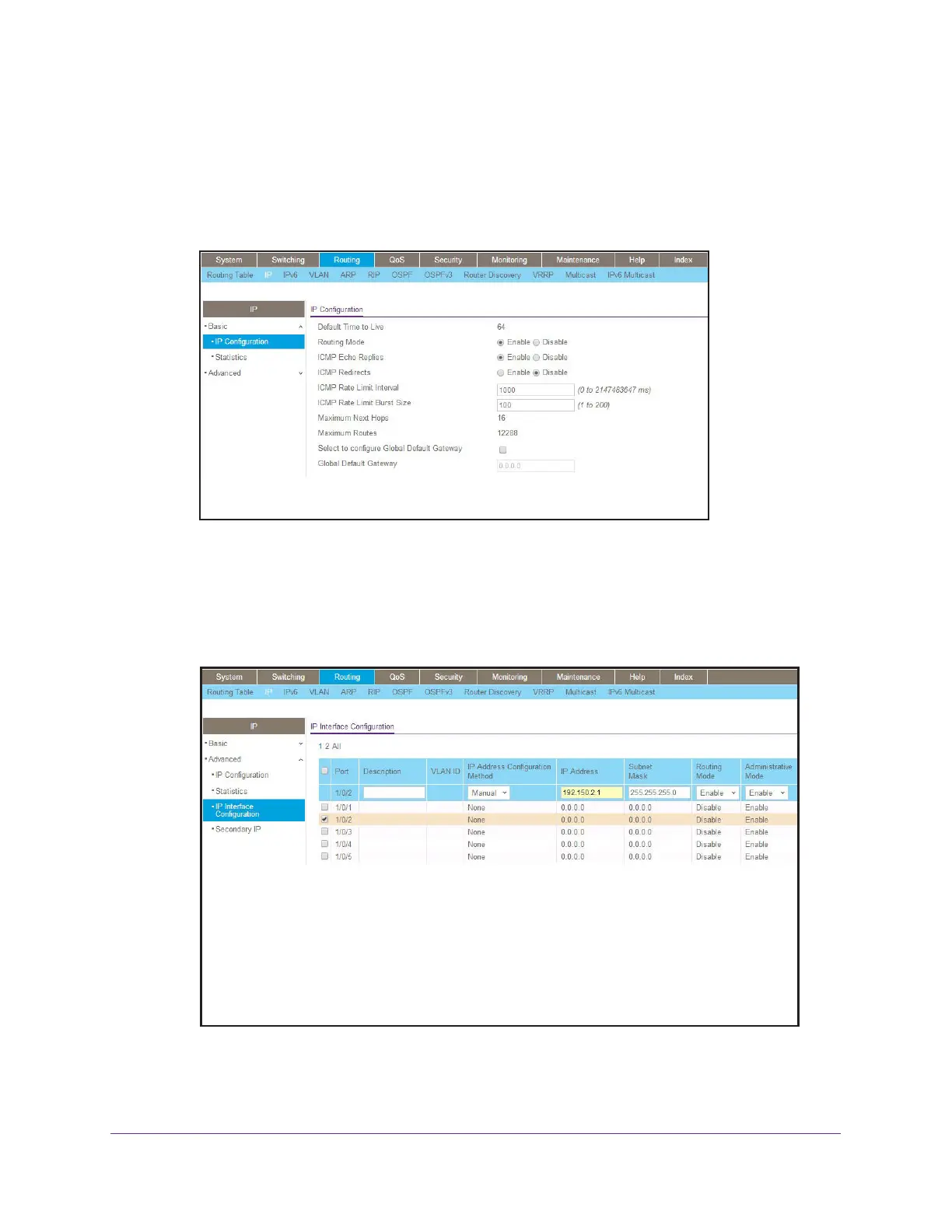

a. Select Routing > IP > Basic > IP Configuration.

A screen similar to the following displays.

b. For Routing Mode, select the Enable radio button.

c. Click Apply to save the settings.

2. Assign IP address 192.150.2.1 to port 1/0/2.

a. Select Routing > IP > Advanced > IP Interface Configuration.

A screen similar to the following displays.

b. Scroll down and select the interface 1/0/2 check box.

Now 1/0/2 appears in the Interface field at the top.
