NETGEAR M4200 User Manual

DHCP L2 Relay and L3 Relay
609
Managed Switches

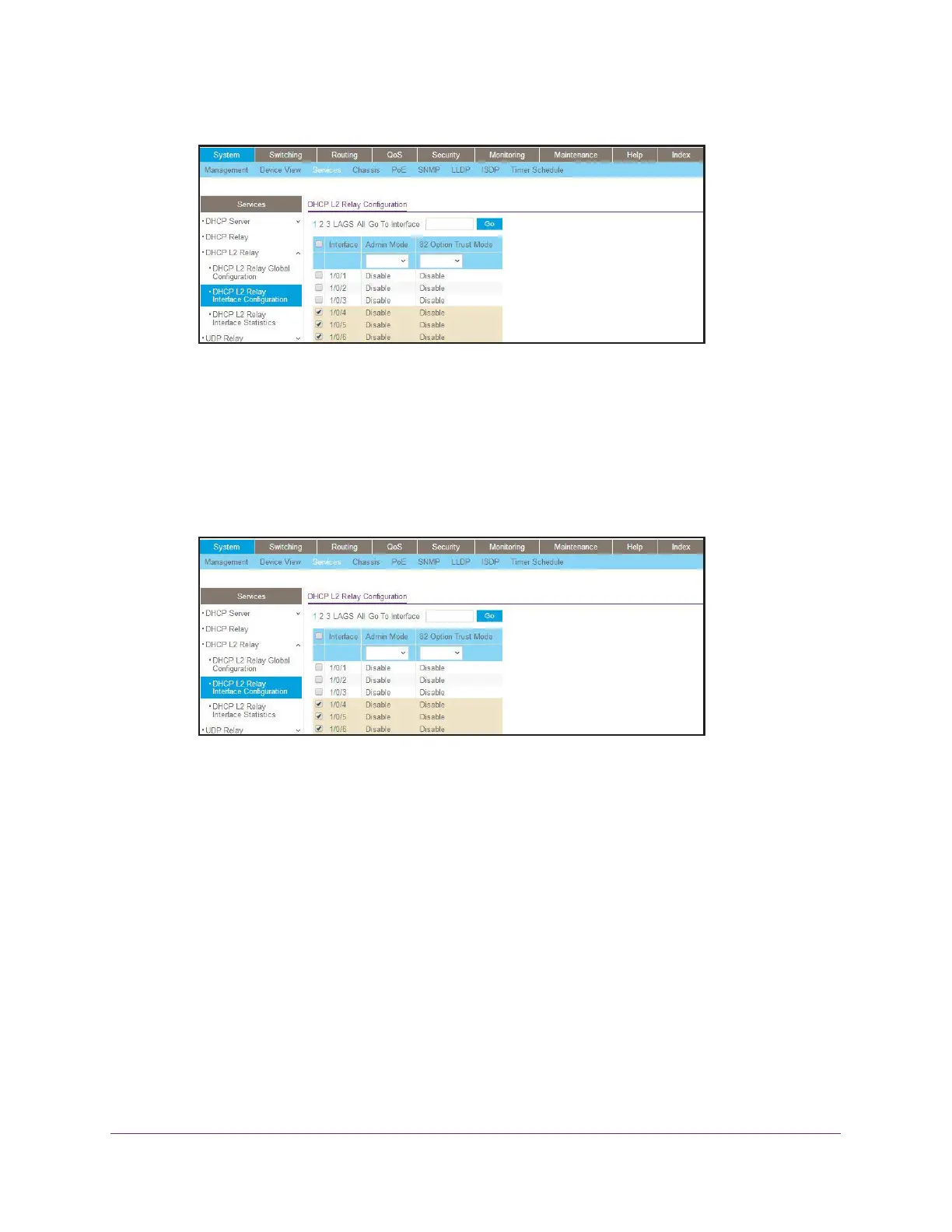

A screen similar to the following displays.
b. Scroll down and select the 1/0/4, 1/0/5, and 1/0/6 check boxes.
c. In the Admin Mode field, select Enable.
d. Click Apply to save the settings.
6. Enable DHCP L2 relay trust on interface 1/0/6.
a. Select System > Services > DHCP L2 Relay > DHCP L2 Relay Interface
Configuration.
A screen similar to the following displays.
b. Under DHCP L2 Relay Configuration, scroll down and select the Interface 1/0/6
check box.
c. In the 82 Option Trust Mode field, select Enable.
d. Click Apply to save the settings.
DHCP L3 Relay
This example consists of two steps:
• Use a Windows Server operating system to configure a DHCP L3 server.
• Use the CLI to configure a DHCP L3 relay through which a DHCP client can receive an IP
address from a DHCP server.
