VLANs

Managed Switches

Web Interface: Configure Voice VLAN and Prioritize Voice

Traffic

1. Create VLAN 10.

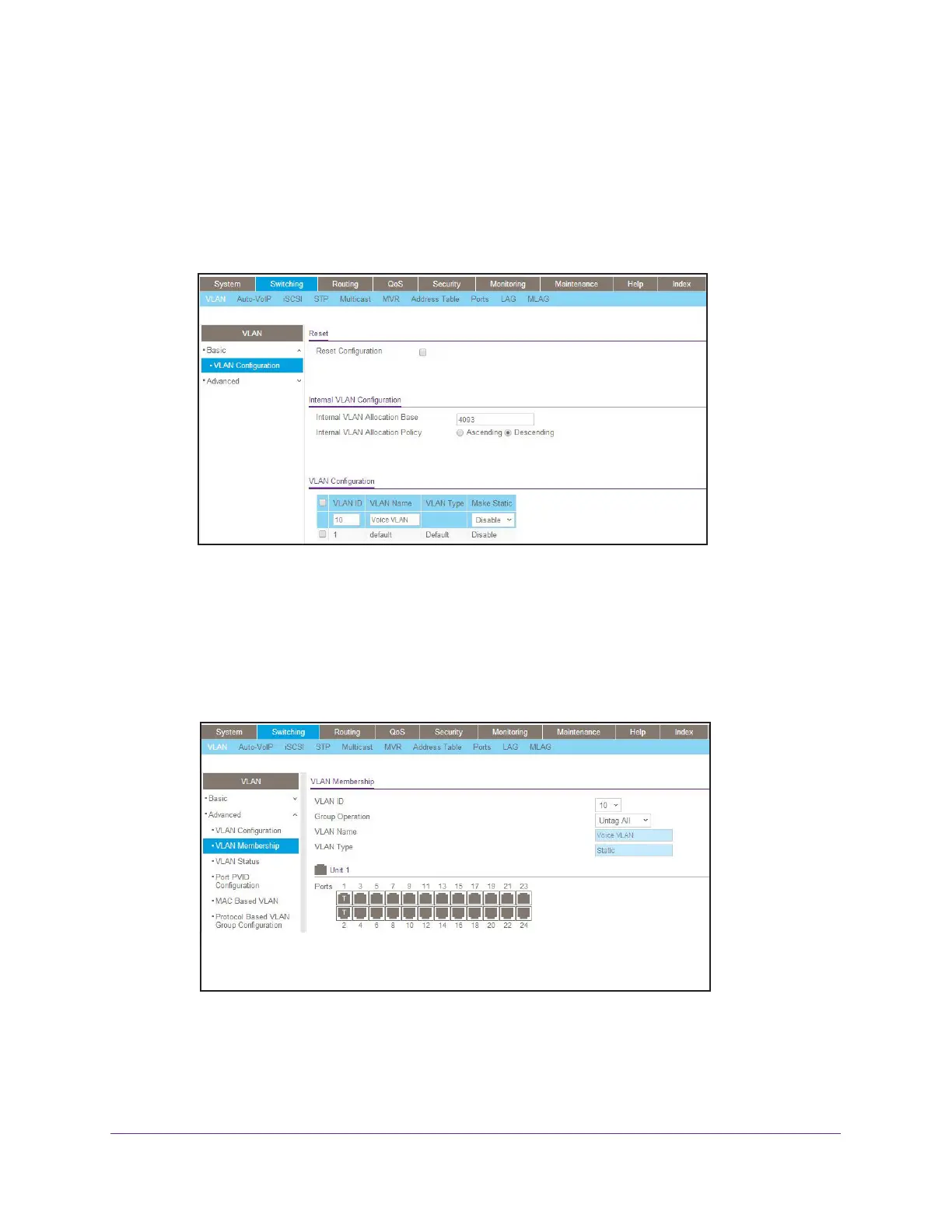

a. Select Switching > VLAN > Basic > VLAN Configuration.

A screen similar to the following displays.

b. In the VLAN ID field, enter 10.

c. In the VLAN Name field, enter Voice VLAN.

d. Click Add.

2. Include the ports 1/0/1 and 1/0/2 in VLAN 10.

a. Select Switching > VLAN > Advanced > VLAN Membership.

A screen similar to the following displays.

b. In the VLAN Membership table, in the VLAN ID list, select 10.

c. Select Port 1 and Port 2 as tagged.

d. Click Apply.
