Now 1/0/4 appears in the Interface field at the top.
• In the OSPF Area ID field, enter 0.0.0.2.
• In the OSPF Admin Mode field, select the Enable.
• In the Priority field, enter 255.
• In the Metric Cost field, enter 64.
c. Click Apply to save the settings.
Stub Areas
The example is shown as CLI commands and as a web interface procedure.

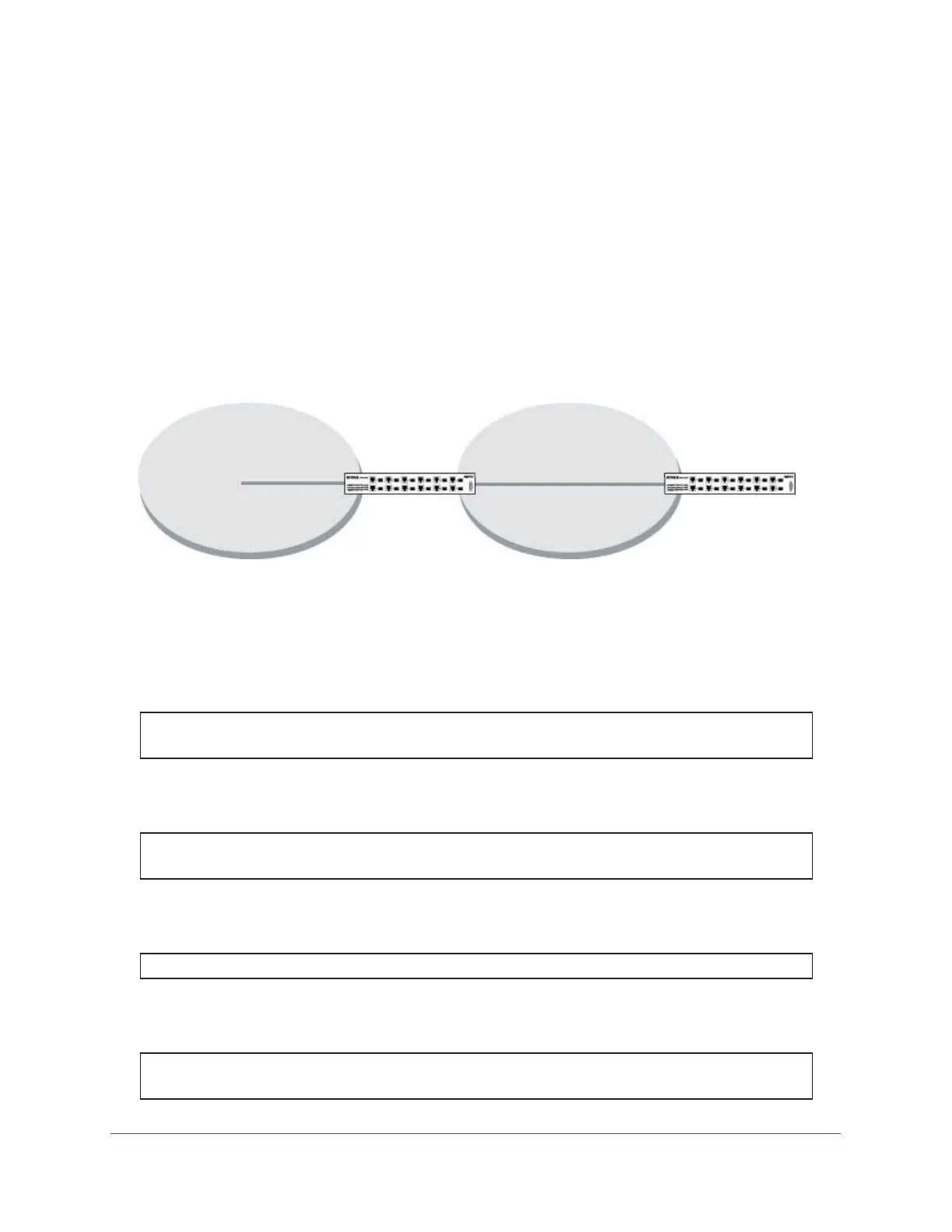

Figure 14. Area 1 is a stub area
CLI: Configure Area 1 as a Stub Area on A1
1. Enable routing on the switch.
2. Set the router ID to 1.1.1.1.
3. Configure area 0.0.0.1 as a stub area
.
4. Switch A injects a default route only to area 0.0.0.1.
(Netgear Switch) #config
(Netgear Switch) (Config)#ip routing
(Netgear Switch) (Config)#router ospf
(Netgear Switch) (Config-router)#router-id 1.1.1.1
(Netgear Switch) (Config-router)#area 0.0.0.1 stub
(Netgear Switch) (Config-router)#no area 0.0.0.1 stub summarylsa
(Netgear Switch) (Config-router)#exit
Port 2/0/11
Port 2/0/19
Port 1/0/15
Layer 3
switch
Area 0 Area 1
Layer 3
switch
