VLANs

Managed Switches

c. From the Port GVRP Mode menu, select Enable.

d. Click Apply.

Web Interface: Configure GVRP on Switch B

1. Enable GVRP globally:

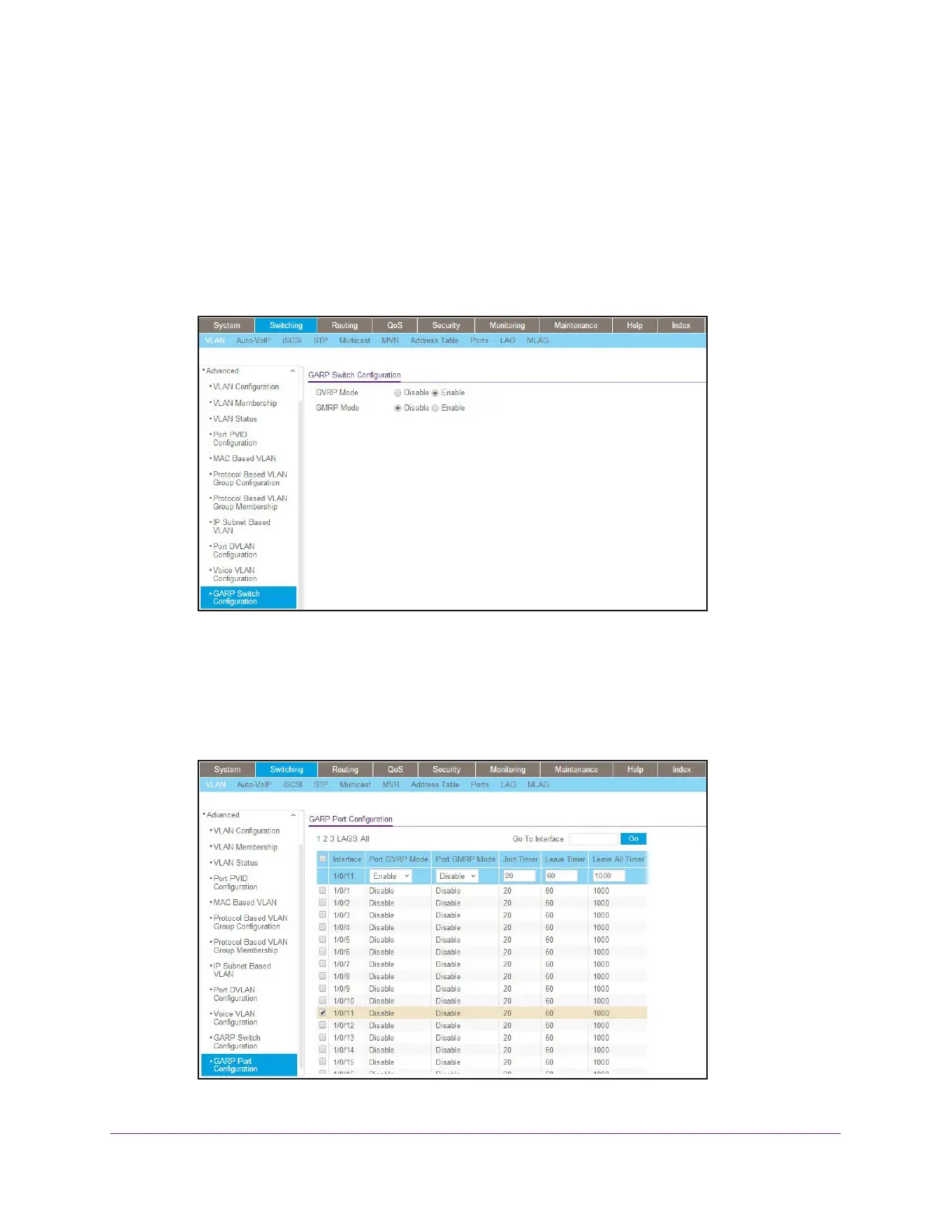

a. Select Switching > VLAN > Advanced > GARP Switch Configuration.

A screen similar to the following displays.

b. Next to GVRP Mode, select the Enable radio button.

c. Click Apply.

2. Enable GVRP on port 1/0/11:

a. Select Switching > VLAN > Advanced > GARP Port Configuration.

A screen similar to the following displays.
