MVR
291
Managed Switches

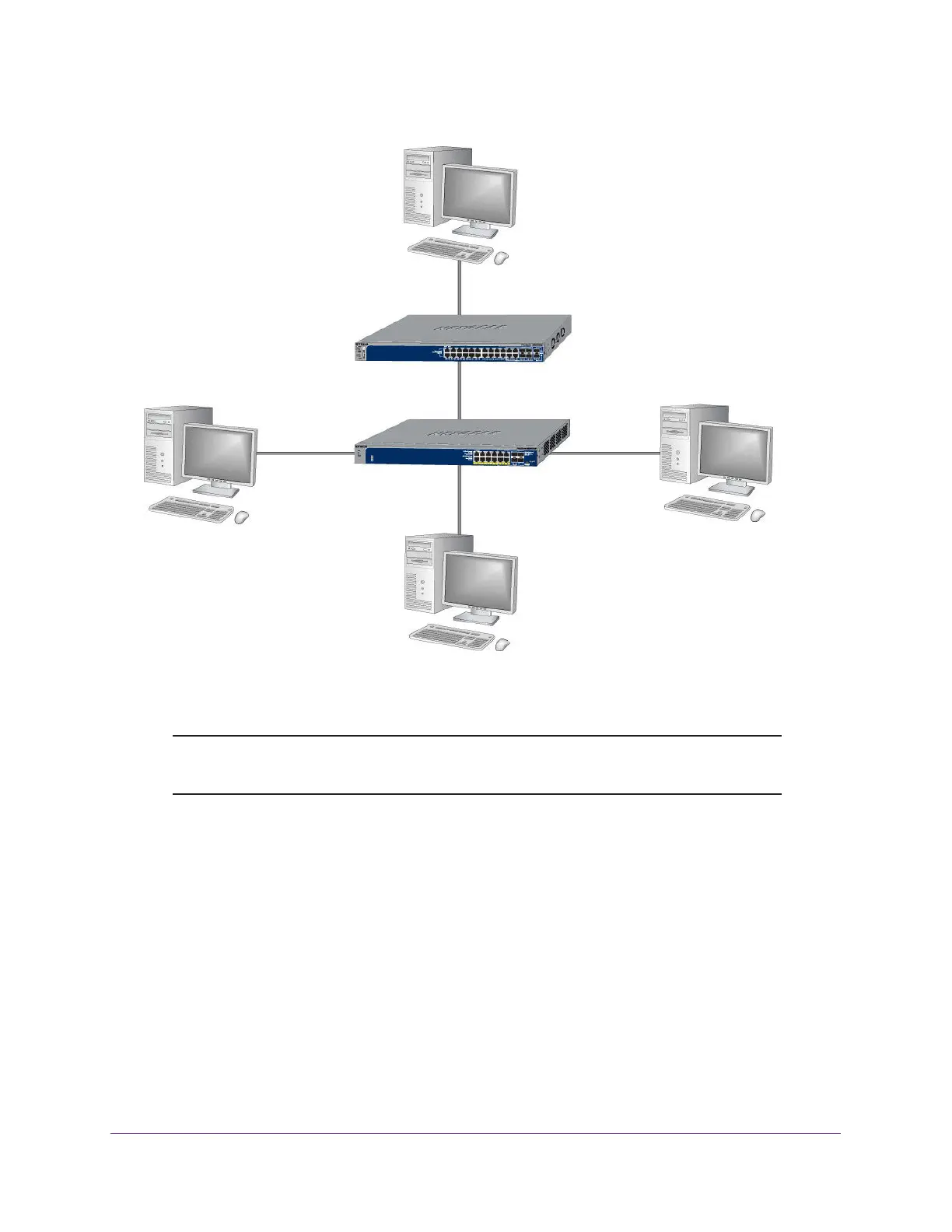

Figure 31. Network configured for MVR
Note: The following examples show how to configure the MVR on the MVR
switch.
Configure MVR in Compatible Mode
In compatible mode, the MVR switch does not learn multicast groups; the groups have to be
configured by the operator as the MVR does not forward IGMP reports from the hosts (RP
port) to the IGMP router (SP port). To operate in this mode, the IGMP router has to be
statically configured to transmit all required multicast streams to the MVR switch.
Multicast source
IGMP switch
SP (VLAN999)
RP (VLAN 1001)
RP (VLAN 1002)
Multicast client
Multicast client
Multicast client
RP (VLAN 1003)
SP (VLAN 999)
MVR switch
