Security Management

341

Managed Switches

Web Interface: Configure DHCP Snooping

1. Enable DHCP snooping globally:

a. Select Security > Control > DHCP Snooping Global Configuration.

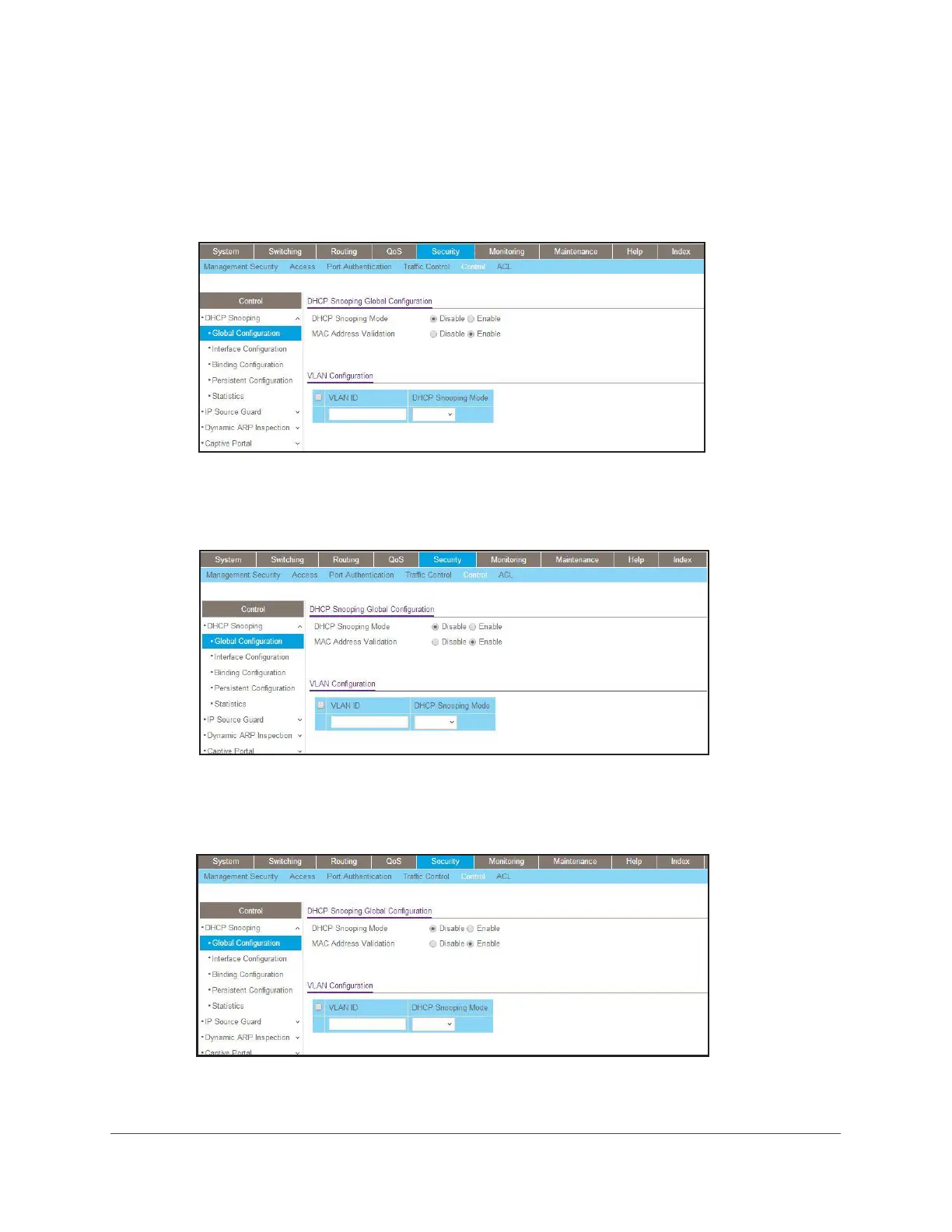

A screen similar to the following displays.

b. For DHCP Snooping Mode, select Enable.

c. Click Apply.

A screen similar to the following displays.

2. Enable DHCP snooping in a VLAN.

a. Select Security > Control > DHCP Snooping Global Configuration.

A screen similar to the following displays.

b. In the VLAN ID list, select 1.

Default Chapter3
