SNMP
459
Managed Switches
5. View the sampling port configurations.
Web Interface: Configure Statistical Packet-based Sampling
with sFlow
1. Configure the sFlow receiver IP address.
a. Select Monitoring > sFlow > Advanced > sFlow Receiver Configuration.
b. Select the 1 check box.
c. In the Receiver Owner field, enter NetMonitor.
d. In the Receiver Timeout field, enter 31536000.
e. In the Receiver Address field, enter 192.168.10.2.

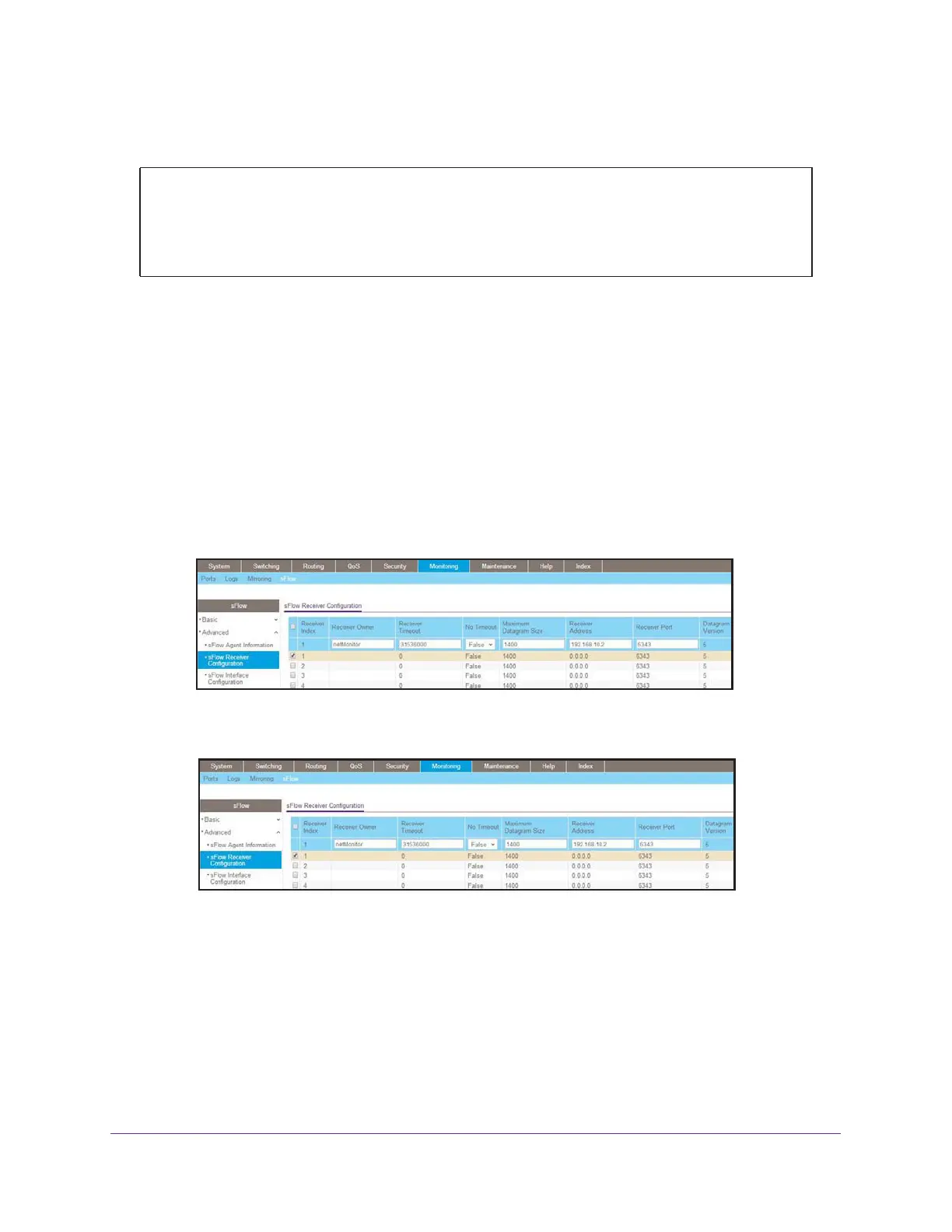

A screen similar to the following displays.
f. Click Apply.
A screen similar to the following displays.
2. Configure the sampling ports sFlow receiver index, sampling rate, and sampling maximum
header size.
a. Select Monitoring > sFlow > Advanced > sFlow Interface Configuration.
(Netgear Switch)) #show sflow samplers
Sampler Receiver Packet Max Header
Data Source Index Sampling Rate Size
----------- --------------- ----------------- ------------------
1/0/1 1 1024 64
