MLD

627

Managed Switches

Web Interface: Configure MLD

MLD on Switch A

1. Enable IP routing on the switch.

a. Select Routing > IP > Basic > IP Configuration.

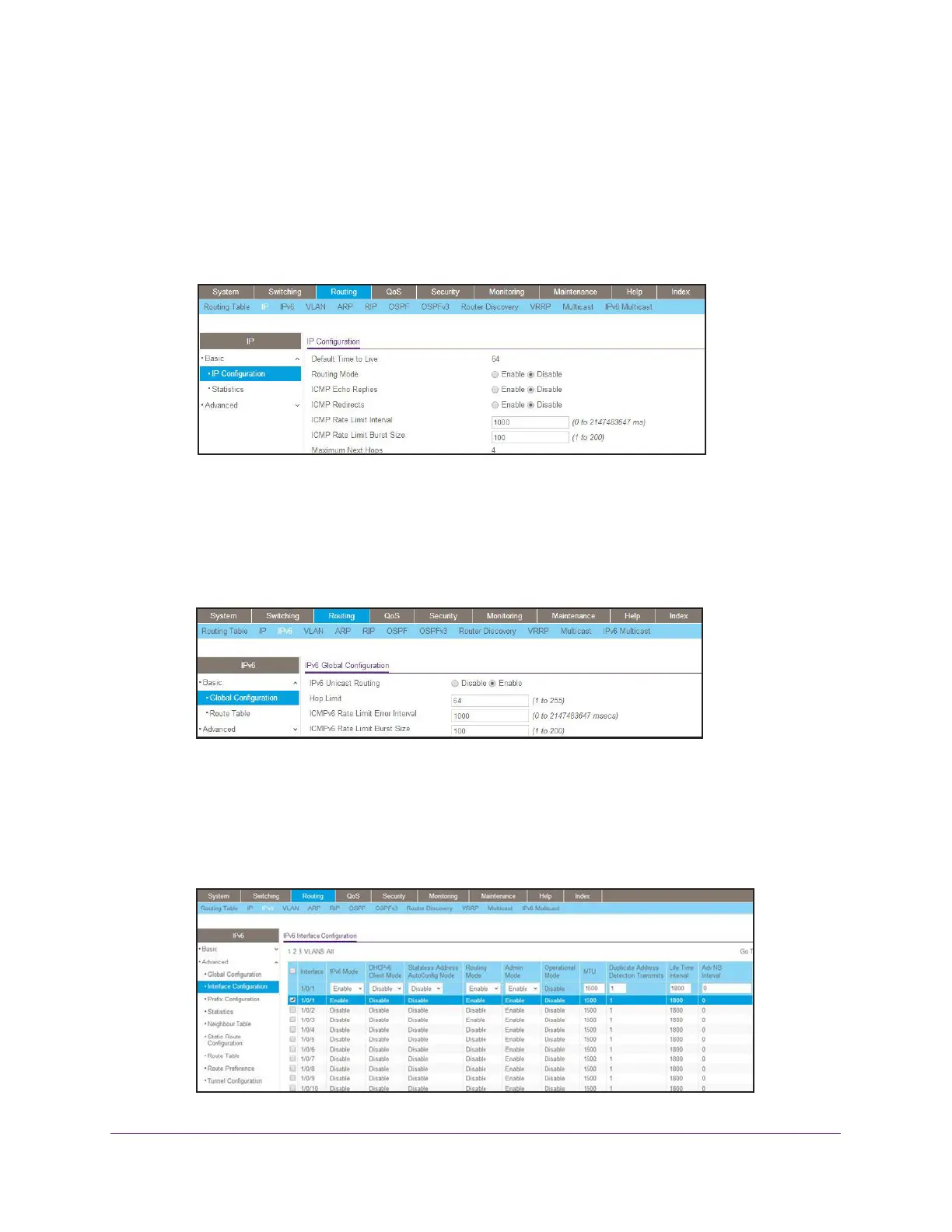

A screen similar to the following displays.

b. For Routing Mode, select the Enable radio button.

c. Click Apply.

2. Enable IPv6 unicast routing on the switch.

a. Select Routing > IPv6 > Basic > Global Configuration.

A screen similar to the following displays.

b. For IPv6 Unicast Routing, select the Enable radio button.

c. Click Apply.

3. Configure 1/0/1 and 1/0/13 as a IPv6 routing ports.

a. Select Routing > IPv6 > Advanced > Interface Configuration.

A screen similar to the following displays.
