OSPF

142

Managed Switches

Web Interface: Configure OSPFv3

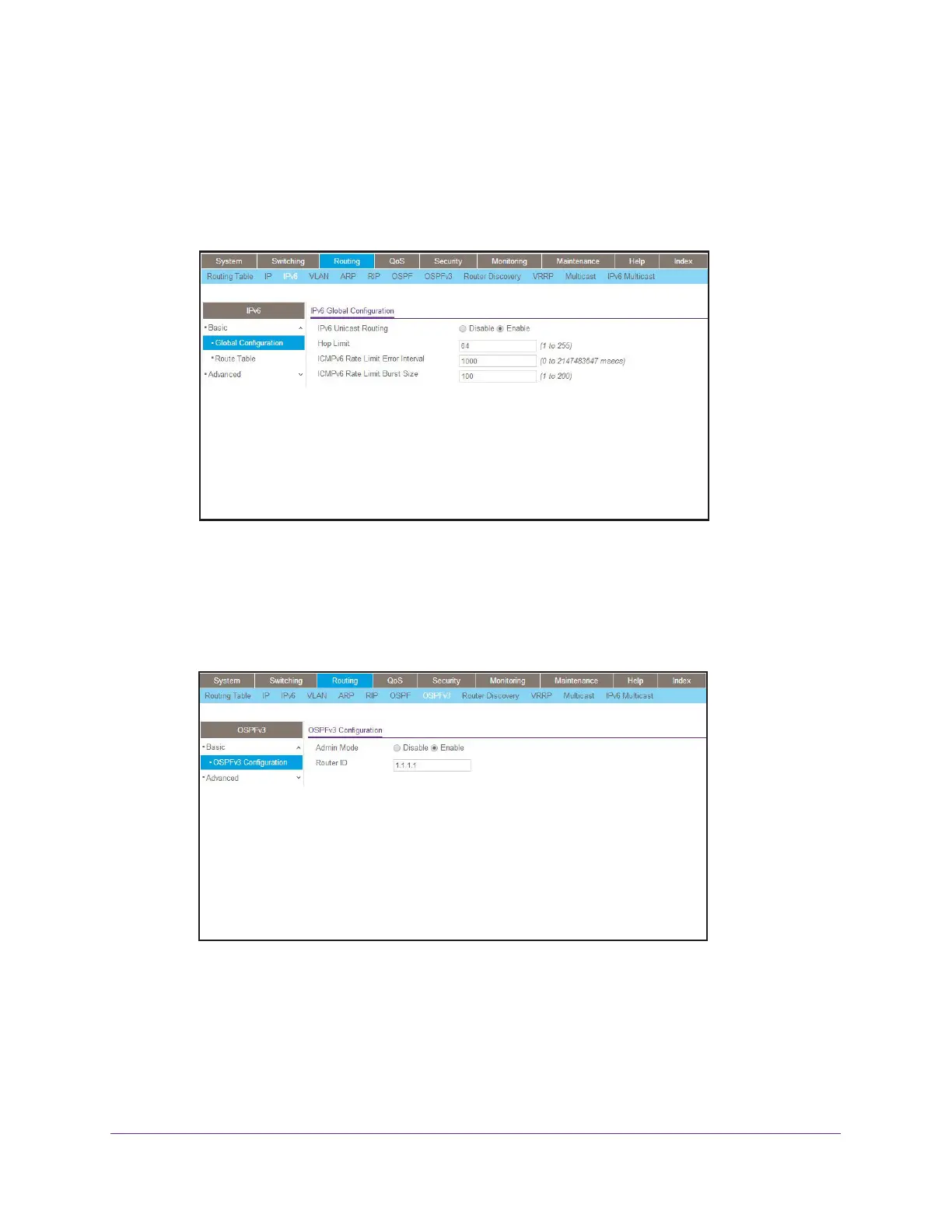

1. Enable IPv6 unicast routing on the switch.

a. Select Routing > IPv6 > Basic > IPv6 Global Configuration.

A screen similar to the following displays.

b. For IPv6 Unicast Routing Mode, select the Enable radio button.

c. Click Apply to save the settings.

2. Specify the router ID, and enable OSPFv3 for the switch.

a. Select Routing > OSPFv3 > Basic > OSPFv3 Configuration.

A screen similar to the following displays.

b. Under the OSPF Configuration, enter the following information:

• In the Router ID field, enter 1.1.1.1.

• For Admin Mode, select the Enable radio button.

c. Click Apply to save the settings.
