OSPF
143
Managed Switches

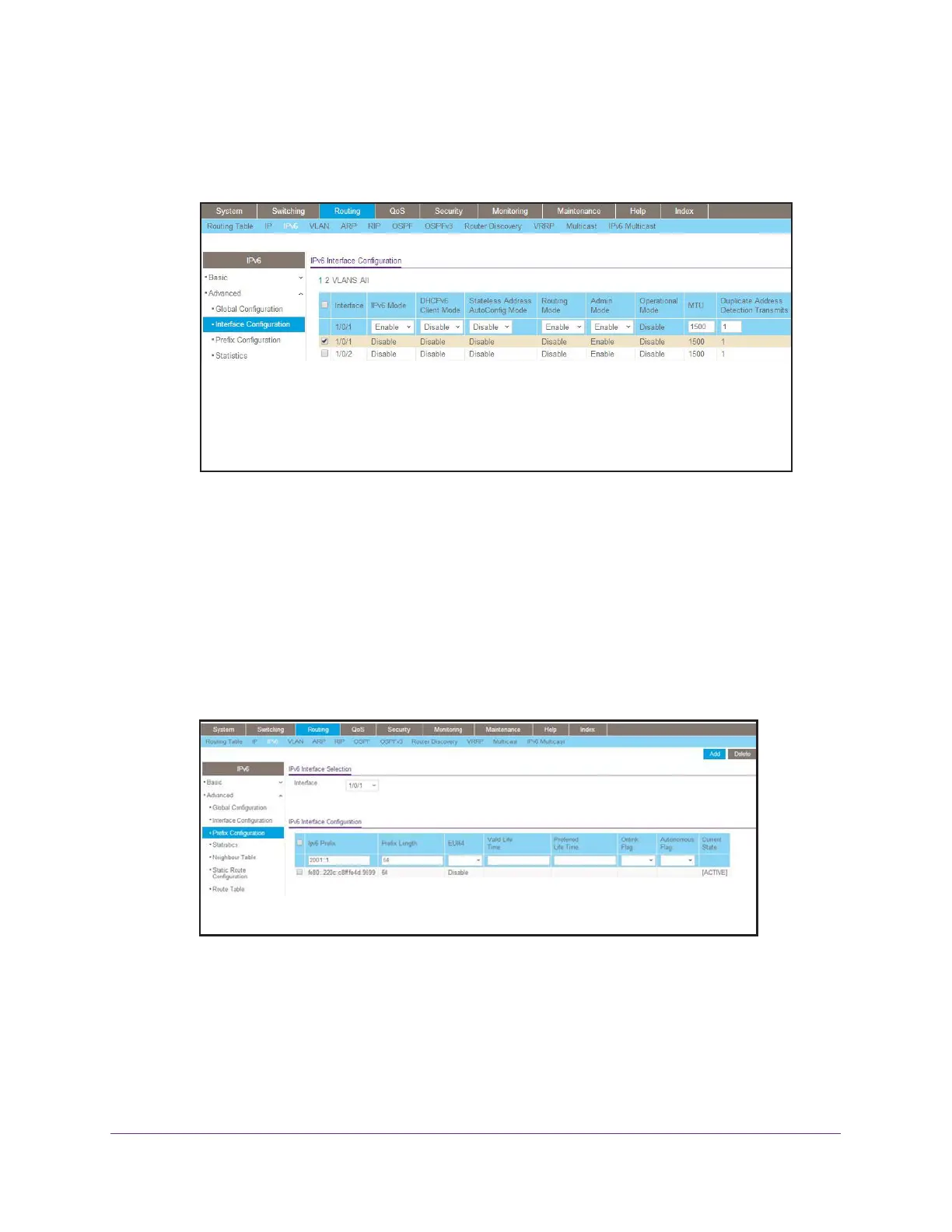

3. Enable IPv6 on port 1/0/1.
a. Select Routing > IPv6 > Advanced > IP Interface Configuration.
A screen similar to the following displays.
b. Scroll down and select the interface 1/0/1 check box. Now 1/0/1 appears in the
Interface field at the top.
c. Enter the following information:
• In the IPv6 Mode field, select Enable.
• In the Routing Mode field, select Enable.
d. Click Apply to save the settings.
4. Assign the IP address 2001::1 to port 1/0/1.
a. Select Routing > IPv6 > Advanced > IP Interface Configuration.
A screen similar to the following displays.
b. Under IPv6 Prefix Selection, in the Interface list, select 1/0/1.
c. Under IPv6 Interface Configuration, enter the following information:
• In the IPv6 Prefix field, enter 2001::1.
• In the Length field, enter 64.
• In the EUI64 field, select Disable.
