NETGEAR M4200 User Manual

VRRP
158
Managed Switches

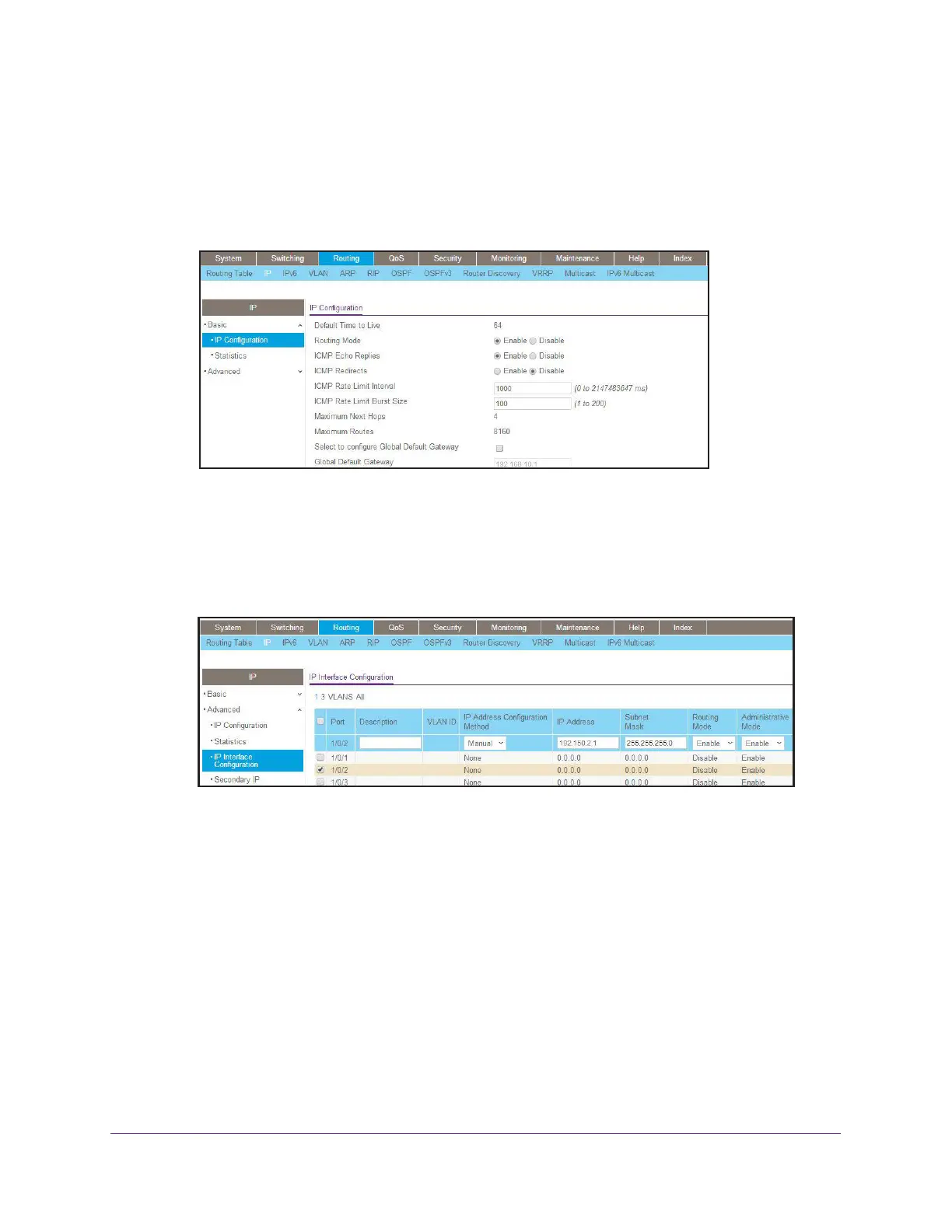

Web Interface: Configure VRRP on a Master Router
1. Enable IP routing on the switch.
a. Select Routing > IP > Basic > IP Configuration.
A screen similar to the following displays.
b. For Routing Mode, select the Enable radio button.
c. Click Apply to save the settings.
2. Assign the IP address 192.150.2.1 to port 1/0/2:
a. Select Routing > IP > Advanced > IP Interface Configuration.
A screen similar to the following displays.
b. Scroll down and select the Interface 1/0/2 check box.
Now 1/0/2 appears in the Interface field at the top.
c. Enter the following information:
• In the IP Address field, enter 192.150.2.1.
• In the Network Mask field, enter 255.255.0.0.
• In the Routing Mode field, select Enable.
d. Click Apply to save the settings.
3. Enable VRRP on port 1/0/2.
a. Select Routing > VRRP > Advanced > VRRP Configuration.
