NETGEAR M4200

DiffServ
232
Managed Switches
DiffServ
This example shows how a network administrator can provide equal access to the Internet
(or other external network) to different departments within a company. Each of four
departments has its own Class B subnet that is allocated 25 percent of the available
bandwidth on the port accessing the Internet.

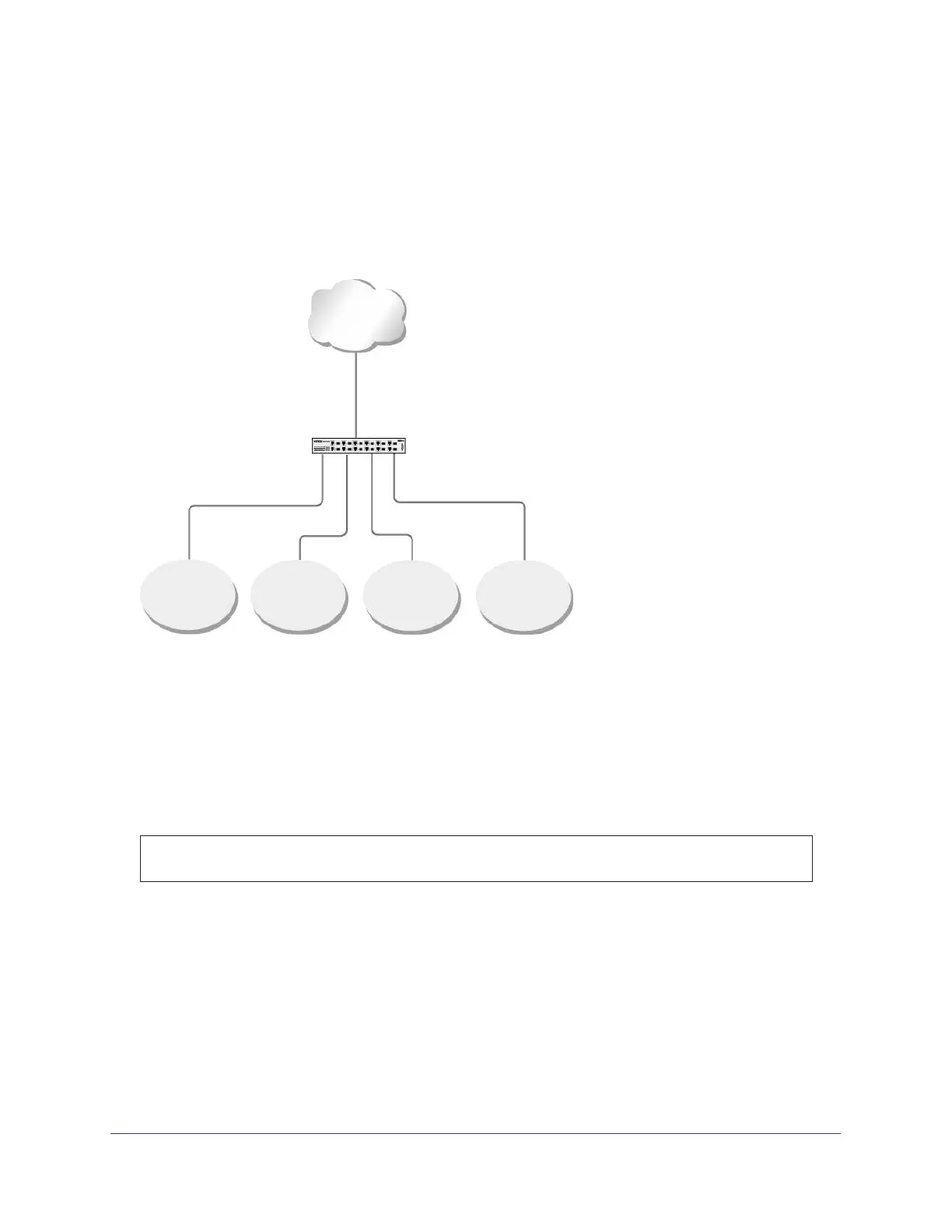

Figure 25. Class B subnet with differentiated services
The example is shown as CLI commands and as a web interface procedure.
CLI: Configure DiffServ
1. Ensure that the DiffServ operation is enabled for the switch.
(Netgear Switch) #config
(Netgear Switch) (Config)#diffserv
Internet
Port 1/0/5
Outbound
Layer 3 Switch
Port 1/0/1
Port 1/0/4
Port 1/0/2
Port 1/0/3
VLAN 10:
Finance
VLAN 20:
Marketing
VLAN 30:
Test
VLAN 40:
Development
